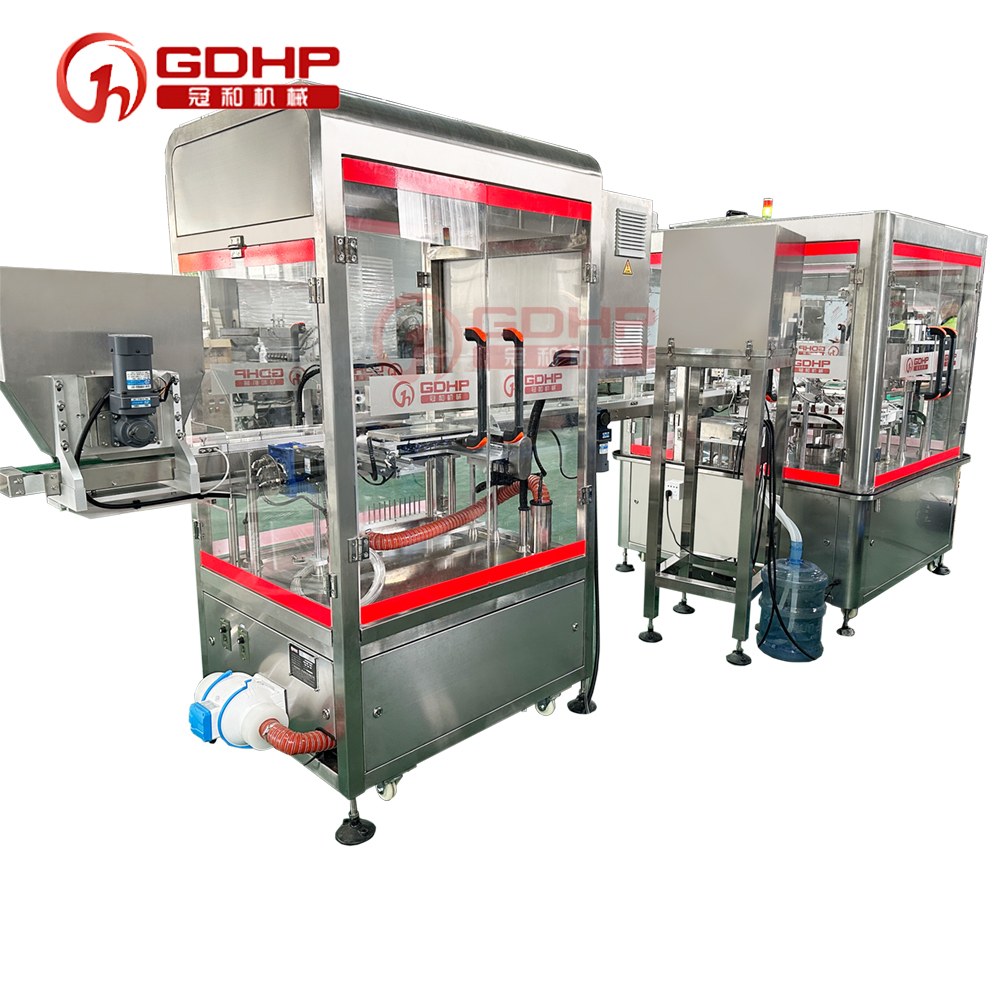

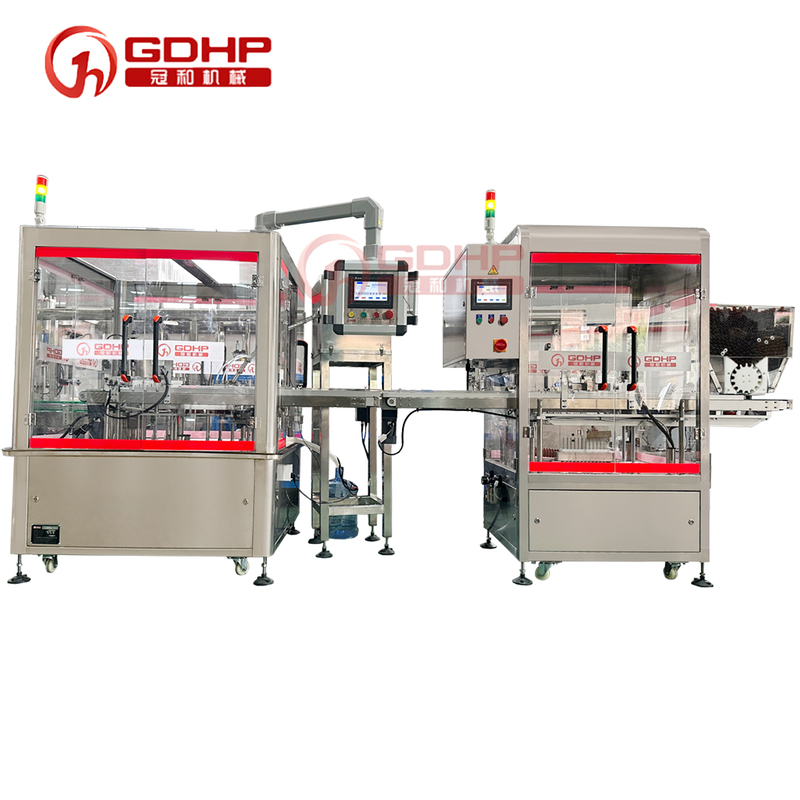

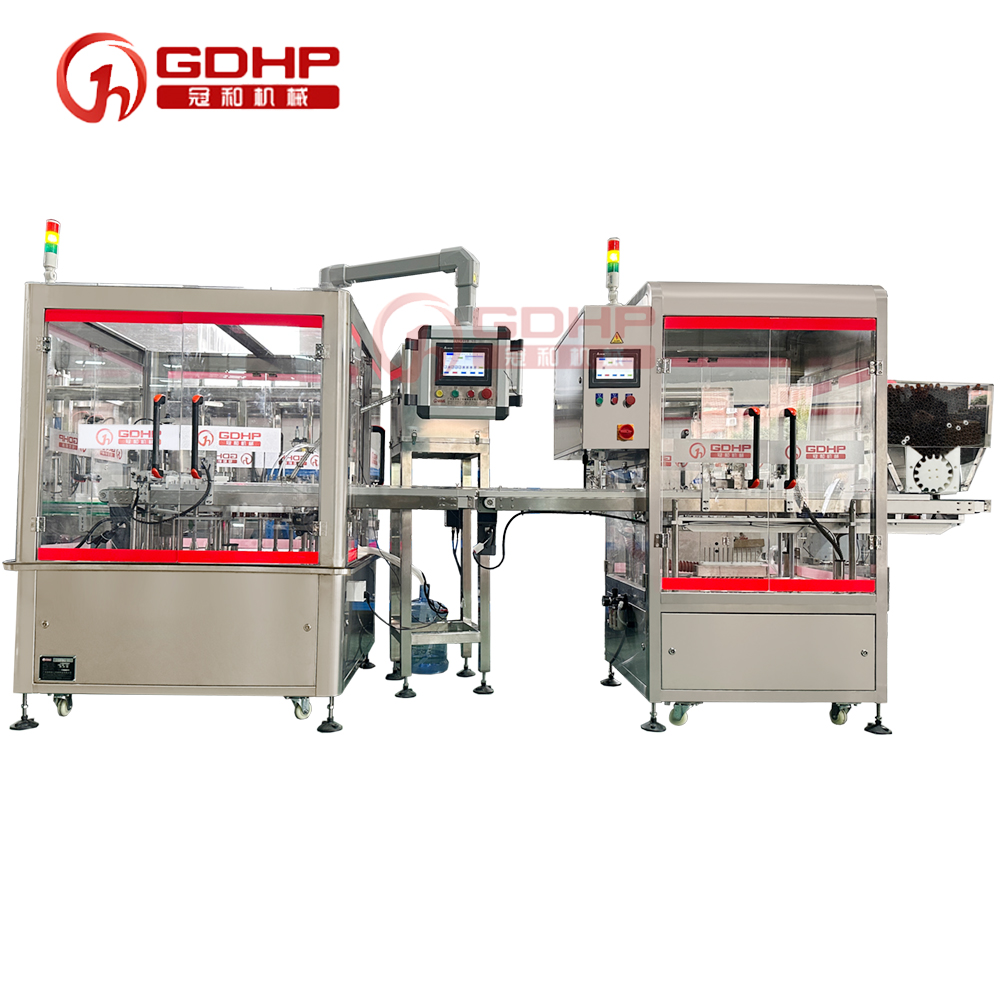

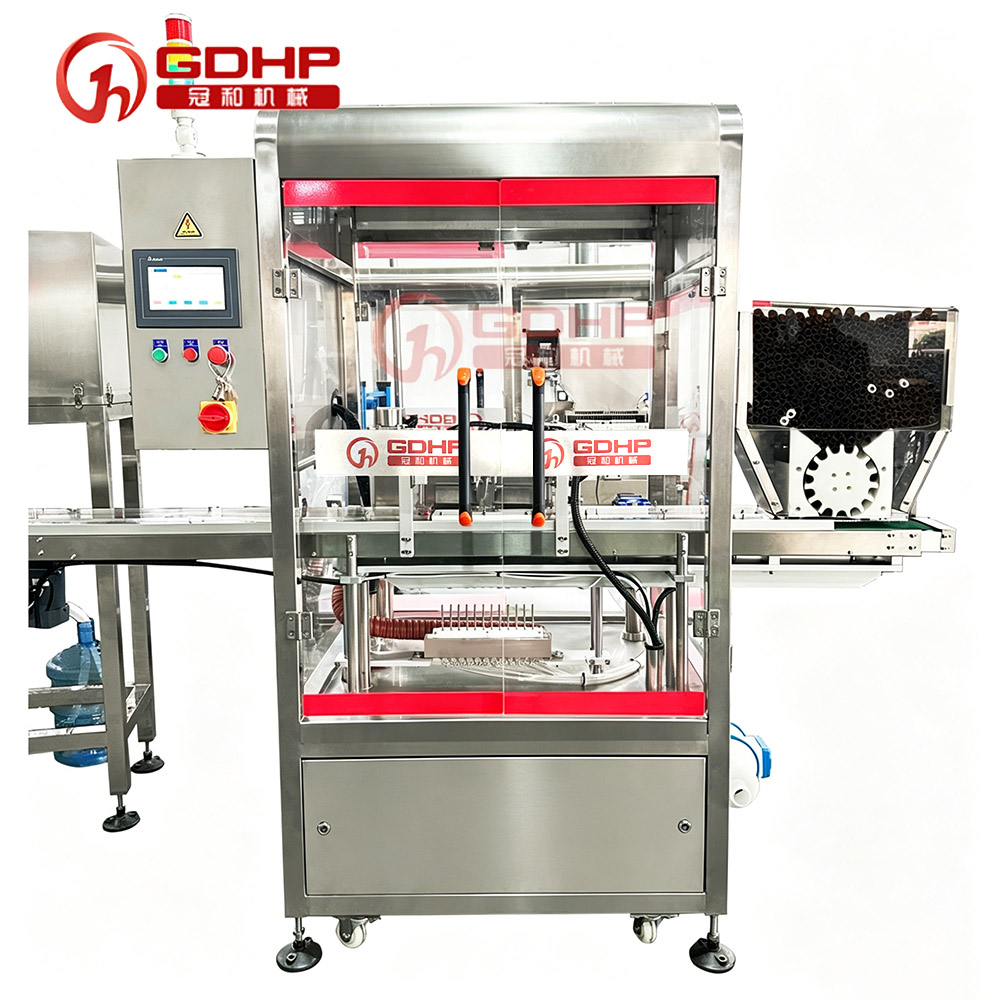

Syrup Oral Liquid Filling Machine Production Line for Food Medical Cosmetic Beverages Factory Customization
This automatic syrup oral liquid filling machine is designed for high-precision filling and capping in food, pharmaceutical, cosmetic, and beverage industries. It features a double-head ceramic pump filling system with ±1% accuracy, adjustable filling volume, and a yield of 60-80 bottles per minute. The equipment ensures reliable capping quality with a failure rate below 0.05%, automatic feeling and mechanical arm operation, and includes a UV lamp for enhanced hygiene. Its modular design allows easy integration with bottle feeding and labeling machines, improving production efficiency.
| Quantity: | |
|---|---|

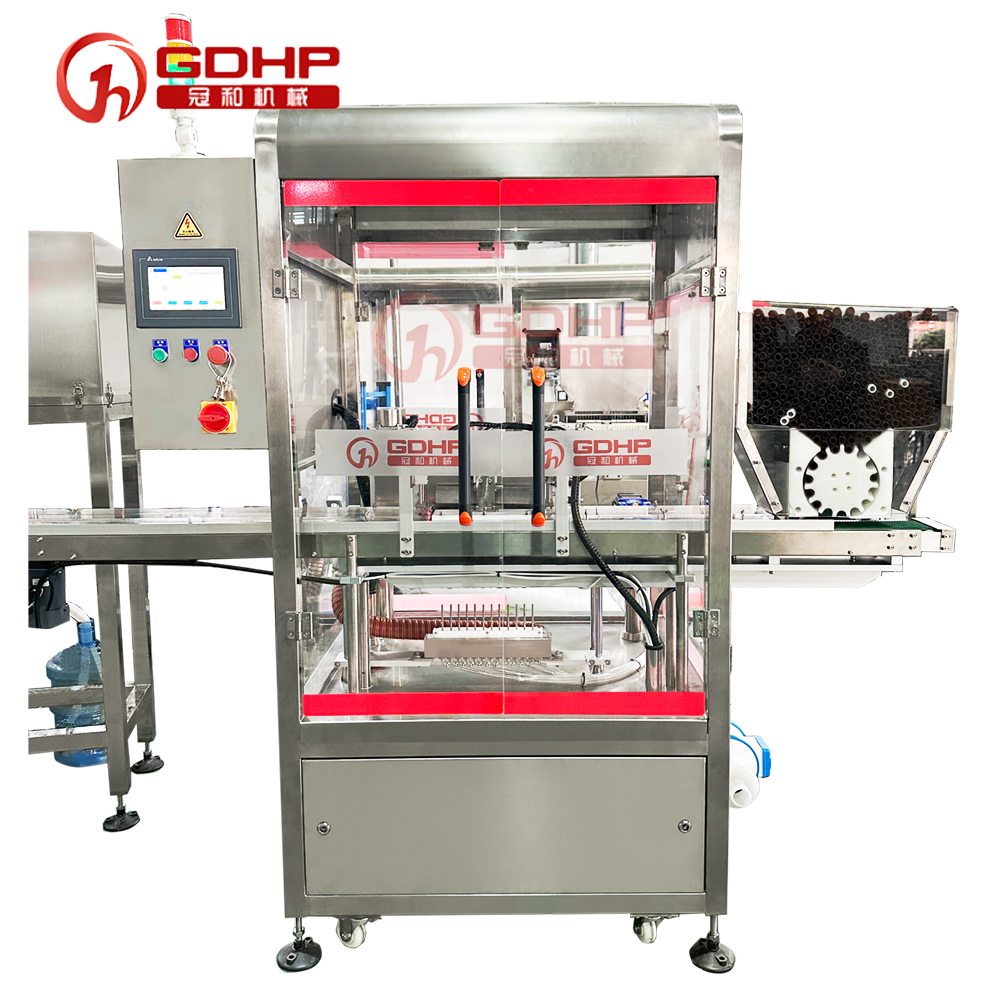

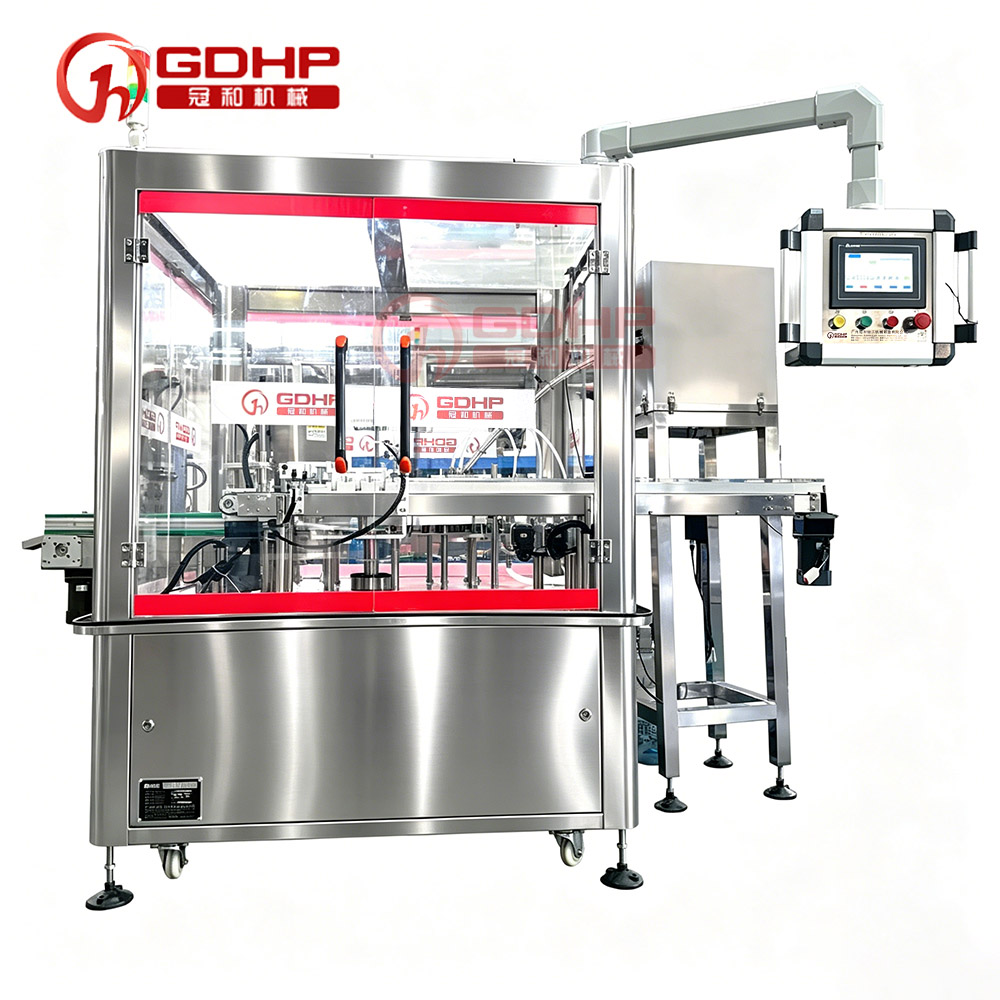

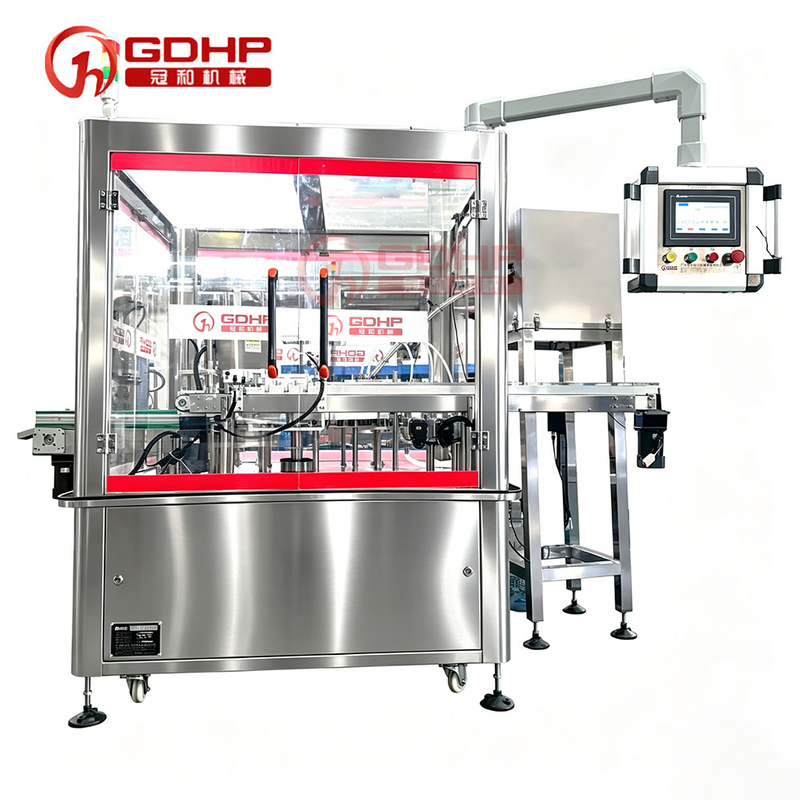

GHALF-2-2 filling and capping machine
Overview:

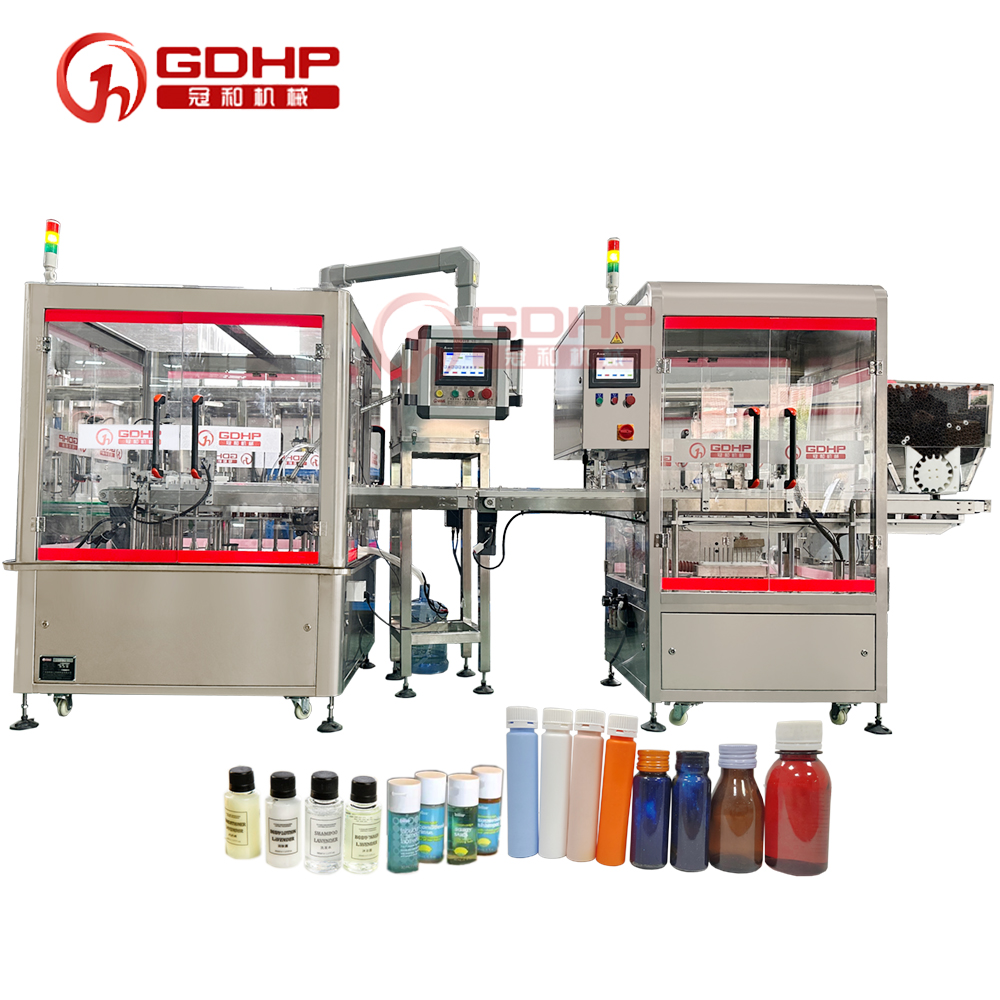

1.This model is suitable for liquid filling and capping in food, pharmaceutical and other industries, such as food industry: PP bottles, oral liquid bottles, vials, etc.
2. This equipment is specially designed for filling and capping small-dose liquids in the cosmetics, medicine, food, and chemical industries.
for buyers within 30ml ; if the caps are the same, they are compatible with other bottles and the turntable needs to be replaced.
Mold replacement is simple and fast.

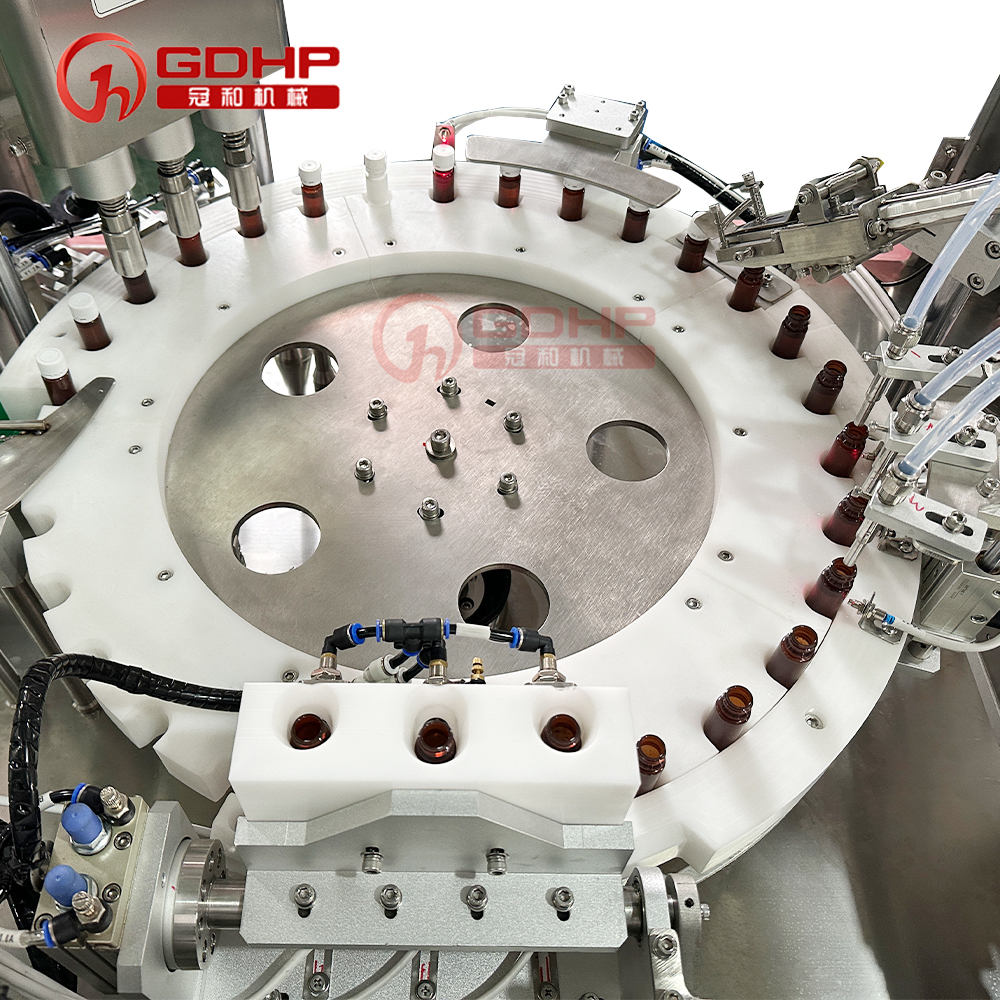

3. The filling station adopts high-precision ceramic pump metering, which is convenient for cleaning and disinfection; it has the advantages of rapid switching when filling different liquid materials.

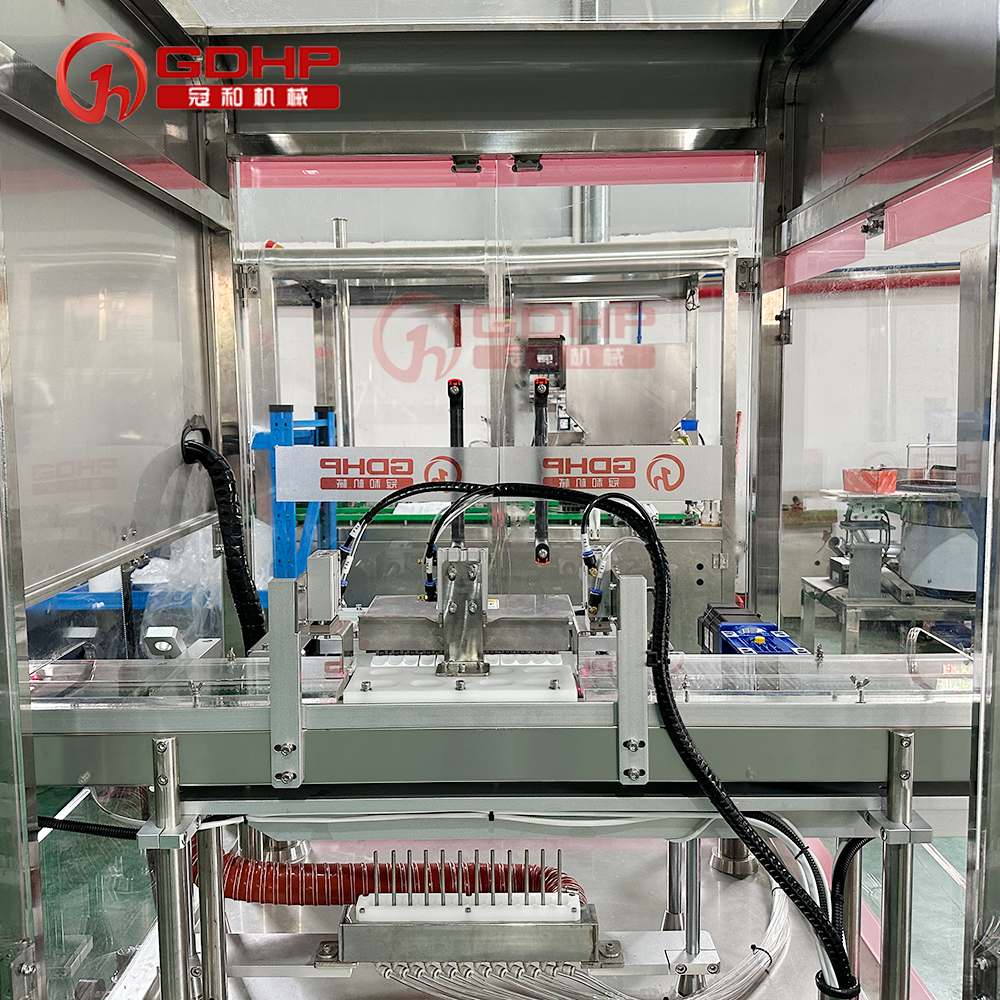

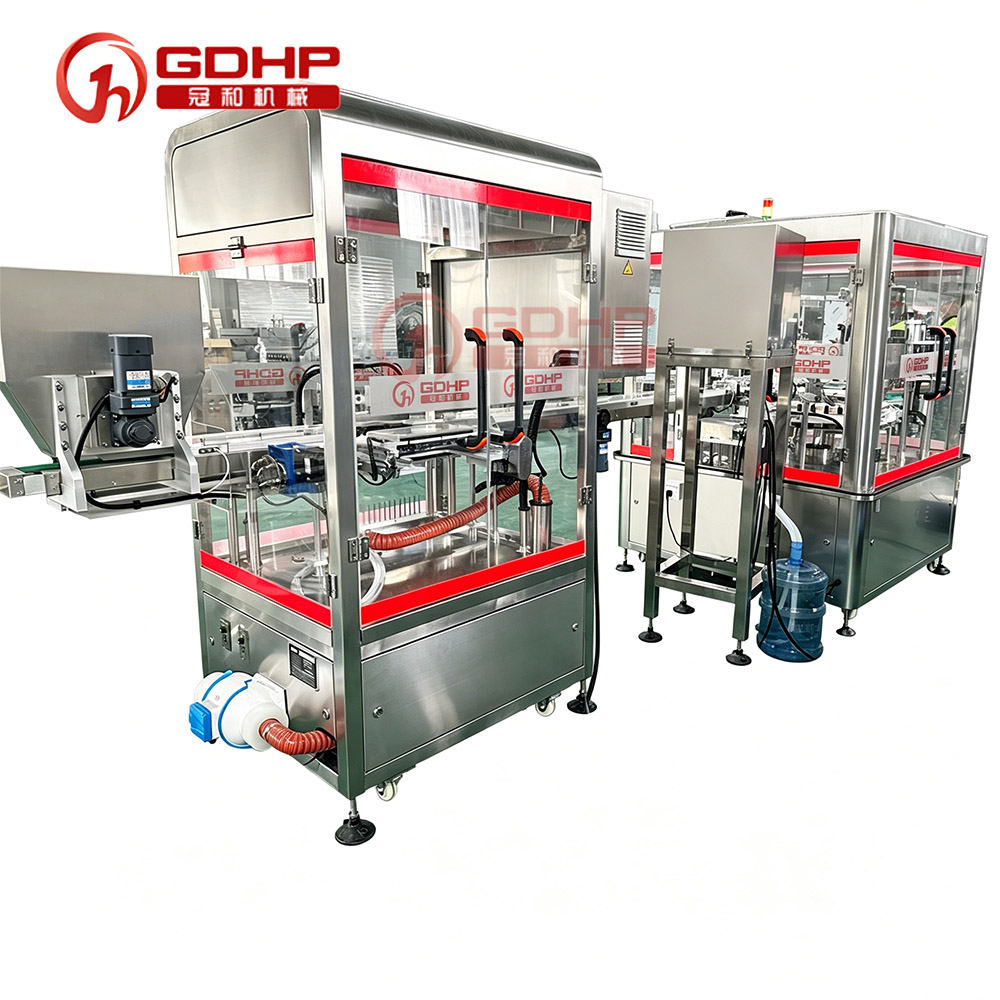

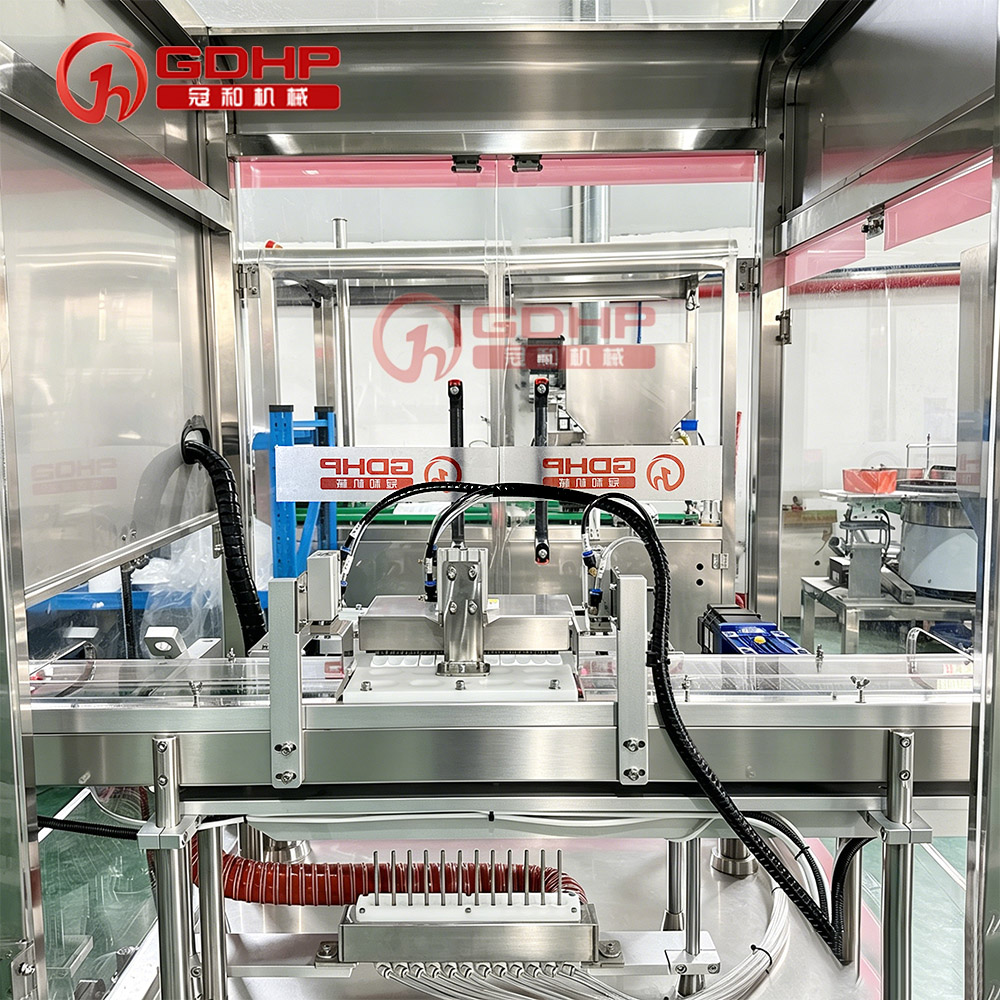

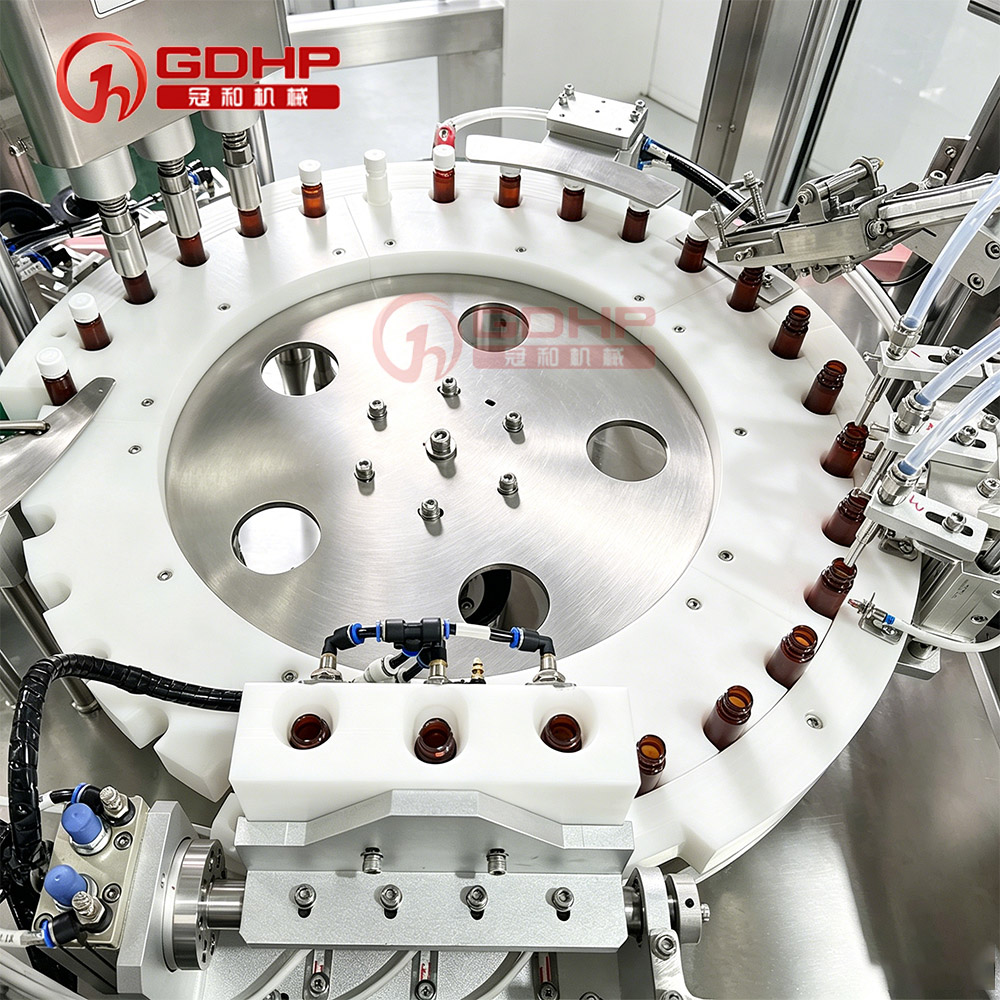

The caps are discharged by a vibration plate, and the cap feeding track is blown by compressed air ; the automatically sorted plugs and caps are put into the bottle mouth by a robot. The capping part adopts servo capping, and the capping force is adjustable. The PVC belt surface is used for stable and safe operation, saving labor. The front end of this machine can be connected to the bottle feeding machine, and the rear end can be connected to the labeling machine to complete the production.
Features :
1.PLC control, ceramic pump quantitative filling, filling volume is manually adjusted, and filling accuracy is high.
2. Vibrating plate cover, including sound insulation cover, greatly reduces noise.
4. Automatic induction, automatic cap removal and capping, mechanical arm cap placement and magnetic head capping, low bottle breakage rate, reliable capping quality, no looseness.
5. This equipment has the functions of no filling without bottle, no capping without cap, and automatic display counting.
6. The stainless steel part of the exterior is SUS304, the part in contact with the material is SUS316L or PVC, and there is a UV lamp on the top of the bracket.
7. After filling and capping, the robot takes out the finished product to the chute, slides it to the customer's tray, and sorts it manually.
