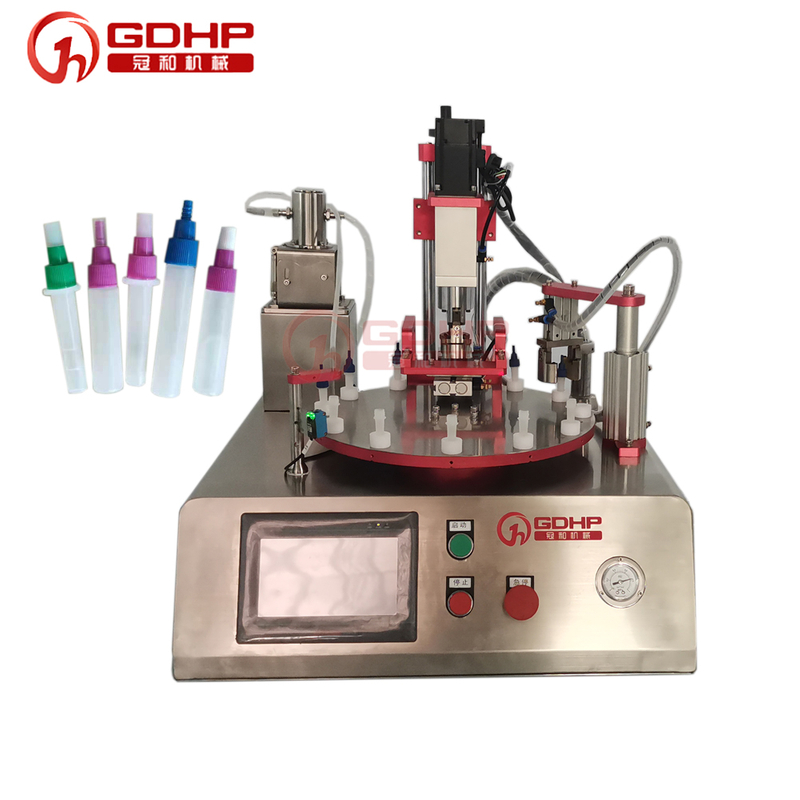

Small tabletop nucleic acid liquid sampling tube filling and capping table top filling machine
| Quantity: | |
|---|---|
-
GDHP
Overview:
This equipment is customized by our company. It is suitable for semi-automatic filling and capping of small bottles and multi-bottles for OEMs of medicine, biology and cosmetics. Different bottle shapes only need to replace the mold, and different cap shapes can replace the capping head. This machine is compact, occupies a small area, and has high product compatibility. It is an ideal equipment for the pharmaceutical and biological industry.
Production process: manual tube-automatic detection-automatic filling-manual capping-automatic capping-automatic bottle output
Features:
1. The filling part adopts a high-precision magnetic pump, which has high filling accuracy, and the material only contacts with the tube, which is easy to clean.
2. The capping torque is controllable, and the capping rate is high.
3. Automatic induction, no dripping, no filling without bottle, precise alignment, free adjustment.
4. Bottles are mechanically clamped and released, and the bottle is exported with slide rails, which is convenient for bottle discharge.
parameters:
Filling method: magnetic pump
Filling accuracy: 5ML±0.15ML 10ML±0.2ML
Capping qualification rate: ≧99%
Capacity: 15-35 bottles per minute (depending on the speed of manual operation)
Voltage: 220V 50HZ
Air pressure: 0.4-0.6Mpa
Weight: 60KG
Size: 730*505*800mm
Overview:
This equipment is customized by our company. It is suitable for semi-automatic filling and capping of small bottles and multi-bottles for OEMs of medicine, biology and cosmetics. Different bottle shapes only need to replace the mold, and different cap shapes can replace the capping head. This machine is compact, occupies a small area, and has high product compatibility. It is an ideal equipment for the pharmaceutical and biological industry.
Production process: manual tube-automatic detection-automatic filling-manual capping-automatic capping-automatic bottle output
Features:
1. The filling part adopts a high-precision magnetic pump, which has high filling accuracy, and the material only contacts with the tube, which is easy to clean.
2. The capping torque is controllable, and the capping rate is high.
3. Automatic induction, no dripping, no filling without bottle, precise alignment, free adjustment.
4. Bottles are mechanically clamped and released, and the bottle is exported with slide rails, which is convenient for bottle discharge.
parameters:
Filling method: magnetic pump
Filling accuracy: 5ML±0.15ML 10ML±0.2ML
Capping qualification rate: ≧99%
Capacity: 15-35 bottles per minute (depending on the speed of manual operation)
Voltage: 220V 50HZ
Air pressure: 0.4-0.6Mpa
Weight: 60KG
Size: 730*505*800mm
