GDHP
Overview:

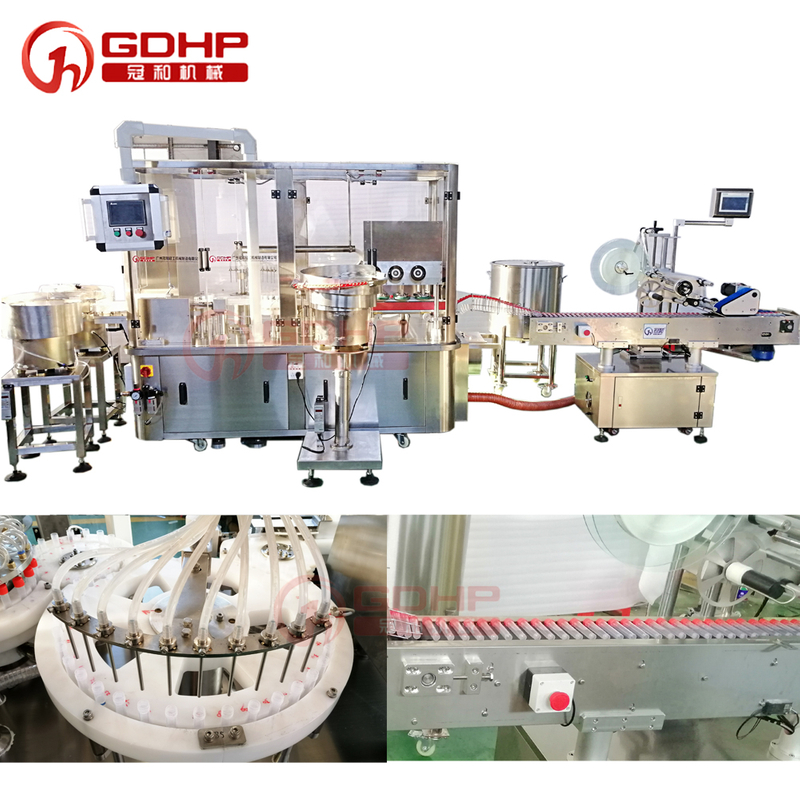

This machine is a special equipment in the sampling tube and detection reagent bottle filling production line. It adopts the rotary tracking filling method, the continuous bottom cap and screw cap, stable filling and high production capacity. Working principle The cylinder is positioned during the orbital operation of the bottle, and the ceramic pump is accurately filled. After the filling is completed, the cylinder is automatically released, and the next filling is carried out in sequence. After the filling is completed, the bottle enters the lower cover and screw cap Work station, after the cap is completed, the bottle is released
Features:
1. Follow-up filling and high-efficiency rotary capping.
3. It adopts world-renowned Delta, Weiluntong, Schneider brand electrical appliances and Taiwan Airtek pneumatic components, with low failure rate, stable and reliable performance and long service life;
4. It is easy to adjust the filling volume and filling speed, and it has the function of no bottle no filling; the feeding part is connected to the customer's storage tank, which is convenient for feeding and ensures stable and continuous filling.
5. The filling of this machine adopts peristaltic pump metering, which has high filling precision and simple and convenient cleaning;
6. PLC and touch screen control operation, frequency conversion speed regulation, automatic counting, simple operation, convenient connection production, high degree of automation.
7. This machine adopts rotary capping, high-speed six-wheel linear, servo capping, capping force can be adjusted on the touch screen, high qualified rate of capping and easy to adjust
8. The whole machine is mainly made of SUS304, and the stainless steel part in contact with the material is SUS316L, which is simple and quick to disassemble, easy to clean, and meets food hygiene requirements.
Parameters:
| Filling nozzles | 10 | Loading Capping | 20 |
| Capping nozzles | 6 | Filling method | Peristaltic pump filling |
| Production Capacity | 130 bottles per minute | capping qualified rate | ≧99% |
| Filling accuracy | 5ML±0.2g | Operating Voltage | 220V /380V60HZ three-phase four-wire system |
| 10ML：±0.3g | |||
| Power | 2.5KW | working pressure | 0.6-0.8Mpa |
| Machine weight | about 1500KG | Dimensions | 4600*2500*2100mm |
