Integrates automatic bottle washing, filling and capping.Bulk bottles are arranged in order and transported to each station through the automatic bottle sorting device.Multi-station spray bottle washing is used to rinse the bottle mouth, bottle body and bottle bottom in all directions.After washing,
Integrates filling, capping and capping in one machine.Designed for high-viscosity liquids such as glycerin.Adopts high-precision metering system to ensure accurate filling and no dripping.The equipment automatically completes operations such as capping, capping and capping.Ensures reliable sealing,
High-speed bottle washing, filling, capping and labeling production line Through ultrasonic vibration and spraying double cleaning, effectively removing internal and external impurities and dust, followed by high-temperature tunnel to complete the drying and aseptic treatment, adopts the plunger pum
Adopting precise temperature control system to ensure smooth and even filling without collapsing.Efficient cooling and plug-pressing linkage system ensures the paste to be quickly characterized without deformation.Automatic carton loading saves time and labor, realizing the whole process automation
Capable of achieving continuous filling and capping operations. Without the need for frequent manual interventionReduces downtime in production. While possessing a high operating speed. Can complete the filling and capping of a large number of products in a short period of timeMeets the demands of rapid
| Availability: | |
|---|---|
| Quantity: | |
GDHP

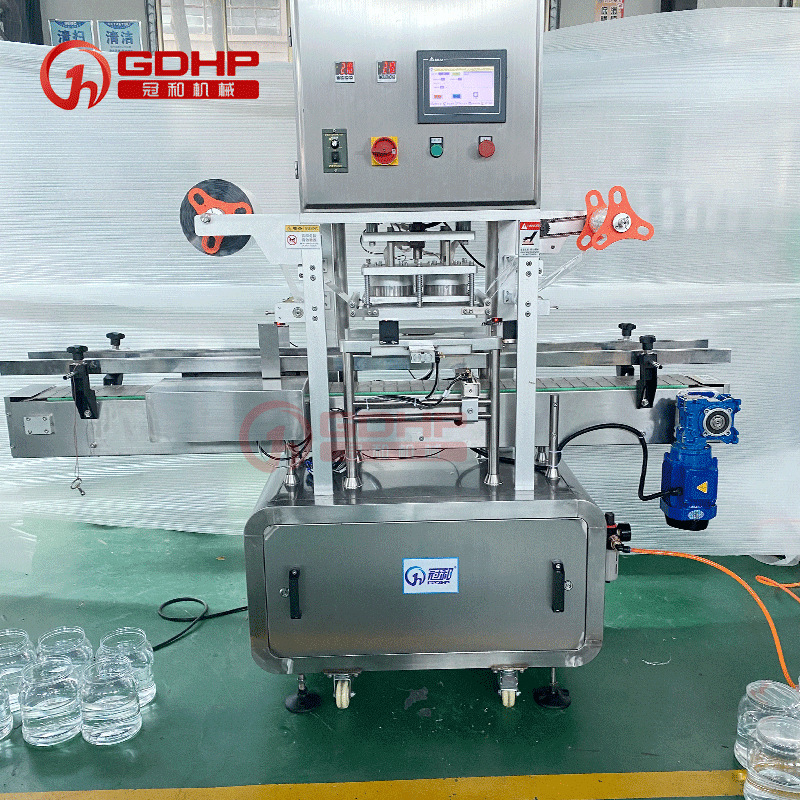

Large bottle mouth aluminum foil bottle filling and sealing machine seal pack machine
Features;
1. The main components of this bottle filling and sealing machine are made of aluminum oxide, stainless steel and other materials.
2. The core control part of the seal pack machine adopts touch screen and PLC. The exquisite appearance better guarantees the performance and quality of the seal pack machine.
3. The film pulling device adopts time control mode.
4. The heat-sealing temperature can be freely set from 80-200 degrees according to the roll film material and bottle material.
5. The heat sealing head adopts the air cylinder as the driving force.
6. The conveyor belt speed is adjustable.
| voltage | Three-phase four-wire | Sealing Nozzles | 10 heads (suitable for one size bottle) |
| Air source pressure | 6-8KG | Suitable material | Composite film, aluminum film |
| Production Capacity | 600-3000 bottles/hour | Applicable bottle type | The shape and size of the sample bottle are designed according to the specifications provided by the buyer |
| use air pressure | 5KG | power supply | 50HZ 380V 9KW |
| Host machine size | 1600*1000*1800 (conveyor belt with 2.5 meters) |




Large bottle mouth aluminum foil bottle filling and sealing machine seal pack machine
Features;
1. The main components of this bottle filling and sealing machine are made of aluminum oxide, stainless steel and other materials.
2. The core control part of the seal pack machine adopts touch screen and PLC. The exquisite appearance better guarantees the performance and quality of the seal pack machine.
3. The film pulling device adopts time control mode.
4. The heat-sealing temperature can be freely set from 80-200 degrees according to the roll film material and bottle material.
5. The heat sealing head adopts the air cylinder as the driving force.
6. The conveyor belt speed is adjustable.
| voltage | Three-phase four-wire | Sealing Nozzles | 10 heads (suitable for one size bottle) |
| Air source pressure | 6-8KG | Suitable material | Composite film, aluminum film |
| Production Capacity | 600-3000 bottles/hour | Applicable bottle type | The shape and size of the sample bottle are designed according to the specifications provided by the buyer |
| use air pressure | 5KG | power supply | 50HZ 380V 9KW |
| Host machine size | 1600*1000*1800 (conveyor belt with 2.5 meters) |
