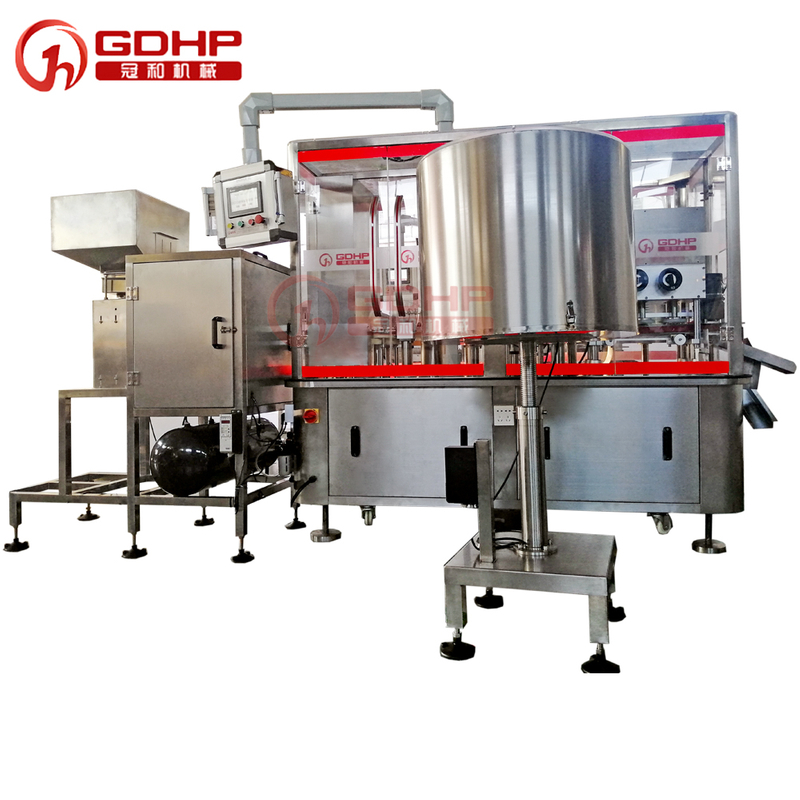

High - speed nucleic acid sampling reagent tube monoblock filler capper machine pharmaceutical vial filling machine

Overview:

This machine is a special equipment in the sampling tube and detection reagent bottle filling production line. It adopts the rotary tracking filling method, the continuous lower cover screw cap, stable filling and high production capacity. Working principle The bottle is positioned by the cam during the orbital operation, and the peristaltic pump is accurately filled. After the filling is completed, the next filling is carried out in sequence. The filled bottle enters the lower cap screwing station through the indexing plate, and the cap is screwed Bottle out when done.

Features:

1. Follow-up filling and in-line capping with high efficiency.

3. Using world-renowned Delta, Weiluntong, Schneider brand electrical appliances and Taiwan Airtek pneumatic components, low failure rate, stable and reliable performance, and long service life;

4. It is easy to adjust the filling volume and filling speed, and it has the function of no bottle no filling; the feeding part is connected to the customer's storage tank, which is convenient for feeding and ensures stable and continuous filling.

5. The filling of this machine adopts peristaltic pump metering, which has high filling precision and simple and convenient cleaning;

6. PLC and touch screen control operation, frequency conversion speed regulation, automatic counting, simple operation, convenient connection production, high degree of automation.

7. This machine adopts rotary capping, high-speed six-wheel linear capping, the last two of the six wheels are servo capping, the servo capping force can be adjusted on the touch screen, and the qualified rate of capping is high and easy to adjust.

8. The whole machine is mainly made of stainless steel SUS304, and the stainless steel part in contact with the material is SUS316L or silicone tube, which is simple and quick to disassemble and easy to clean.

Parameter:

Main configuration list:
