Automatic High Speed Shoe Polish Car Wax Glycerin Soaps Petrolatum Hot Heating Filling And Capping Packing Machine
The GHALF-6 automatic filling machine features a servo piston system with 6 independently controlled heads for high-precision, efficient filling of low-viscosity liquids. It supports capacities of 30-300ml, operates at over 1500 bottles hour, and includes intelligent PLC touch screen controls with recipe memory. The machine's anti-drip design and hygienic SUS304 stainless steel construction ensure contamination-free filling. Equipped with international brand components, it offers durability and stable performance. Certified by CE, it complies with EU safety standards, ensuring market access and operational reliability.
| Quantity: | |
|---|---|
-
GHALF-6

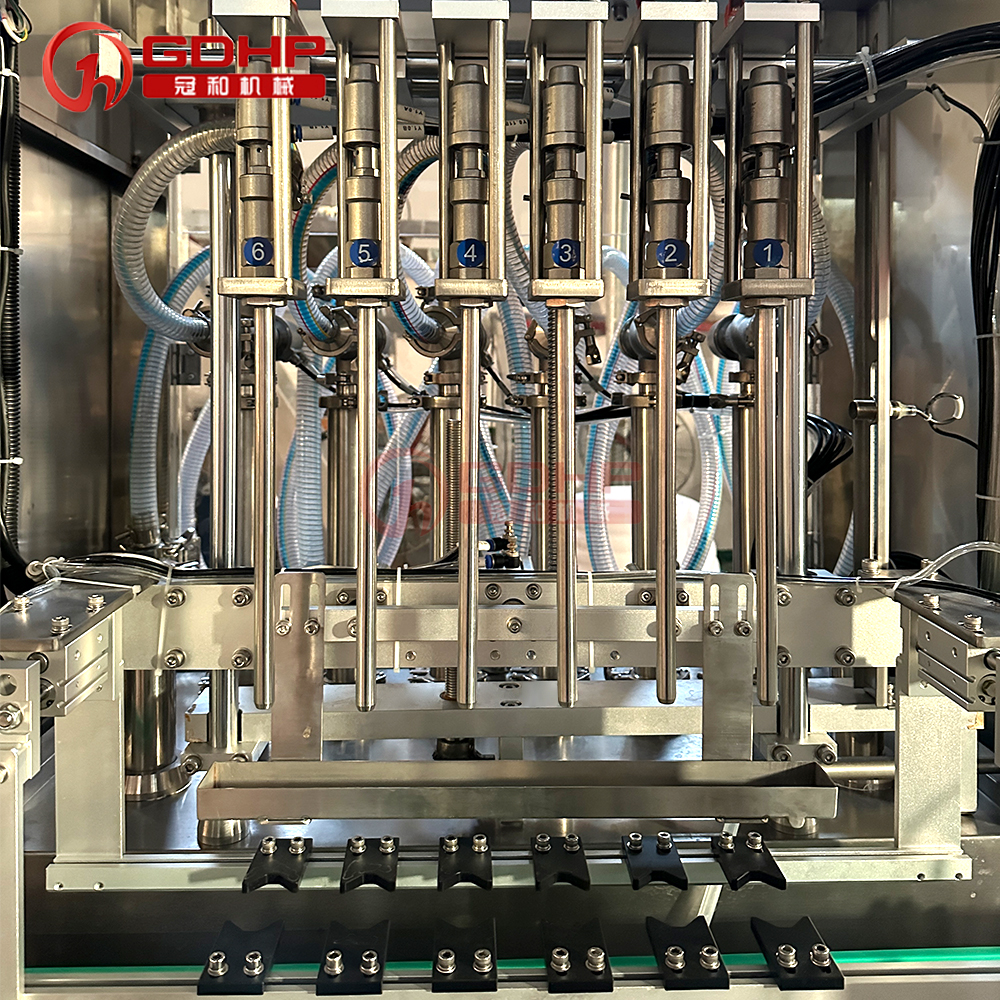

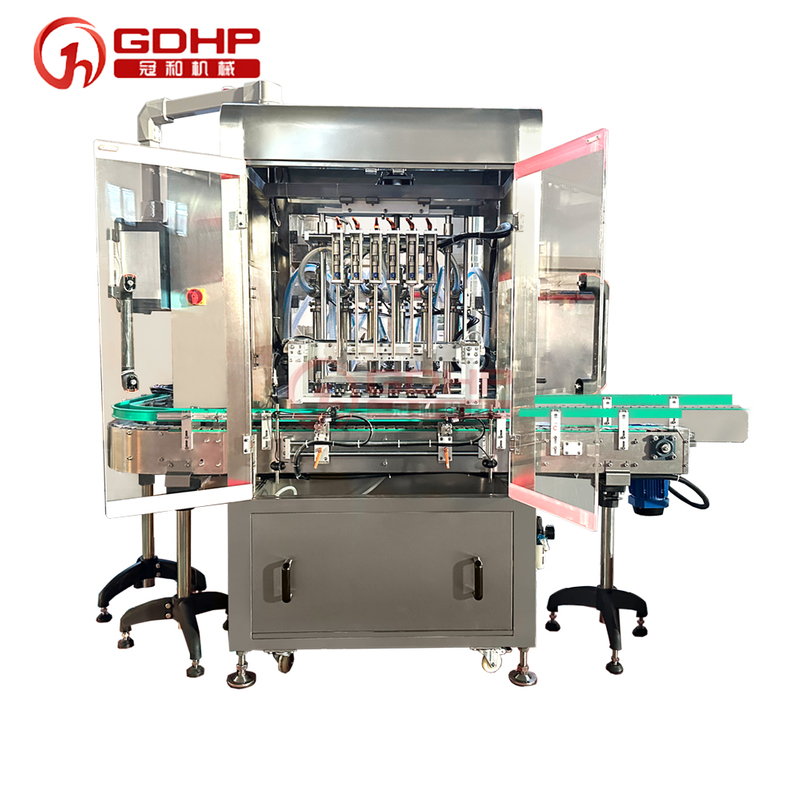

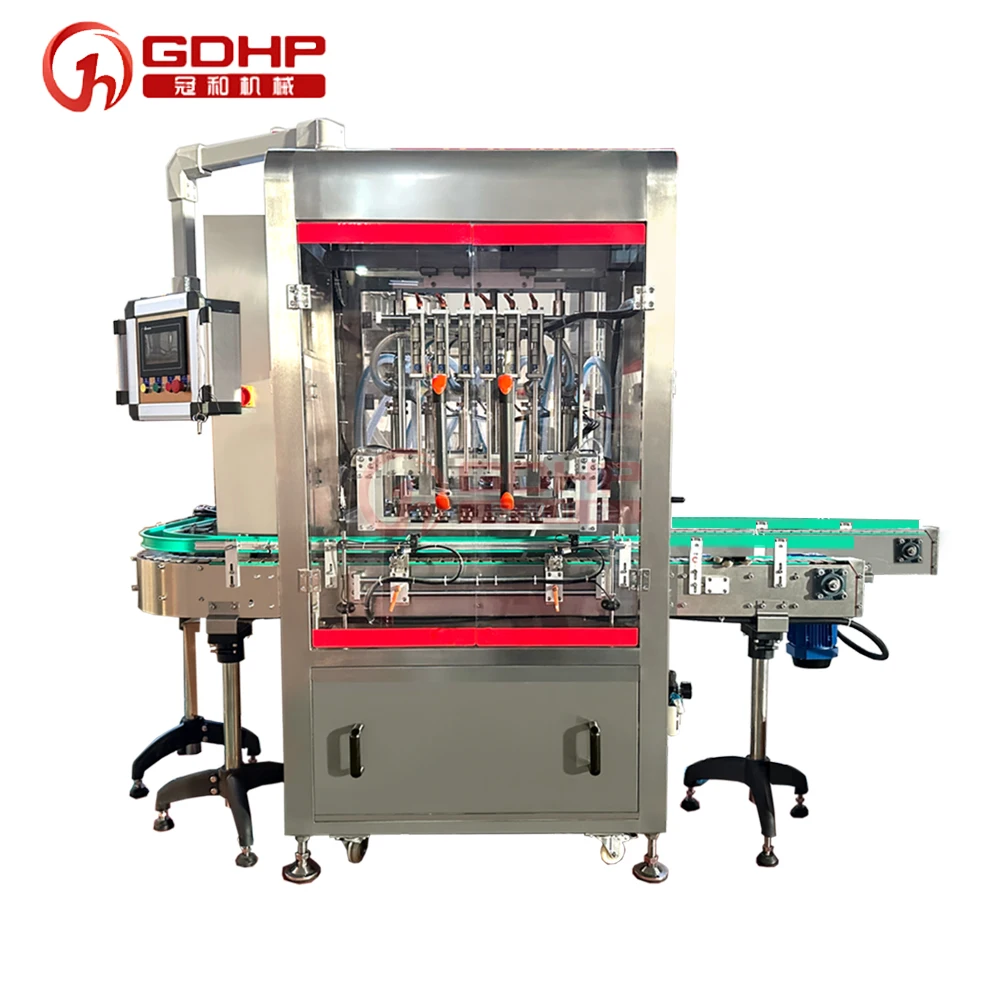

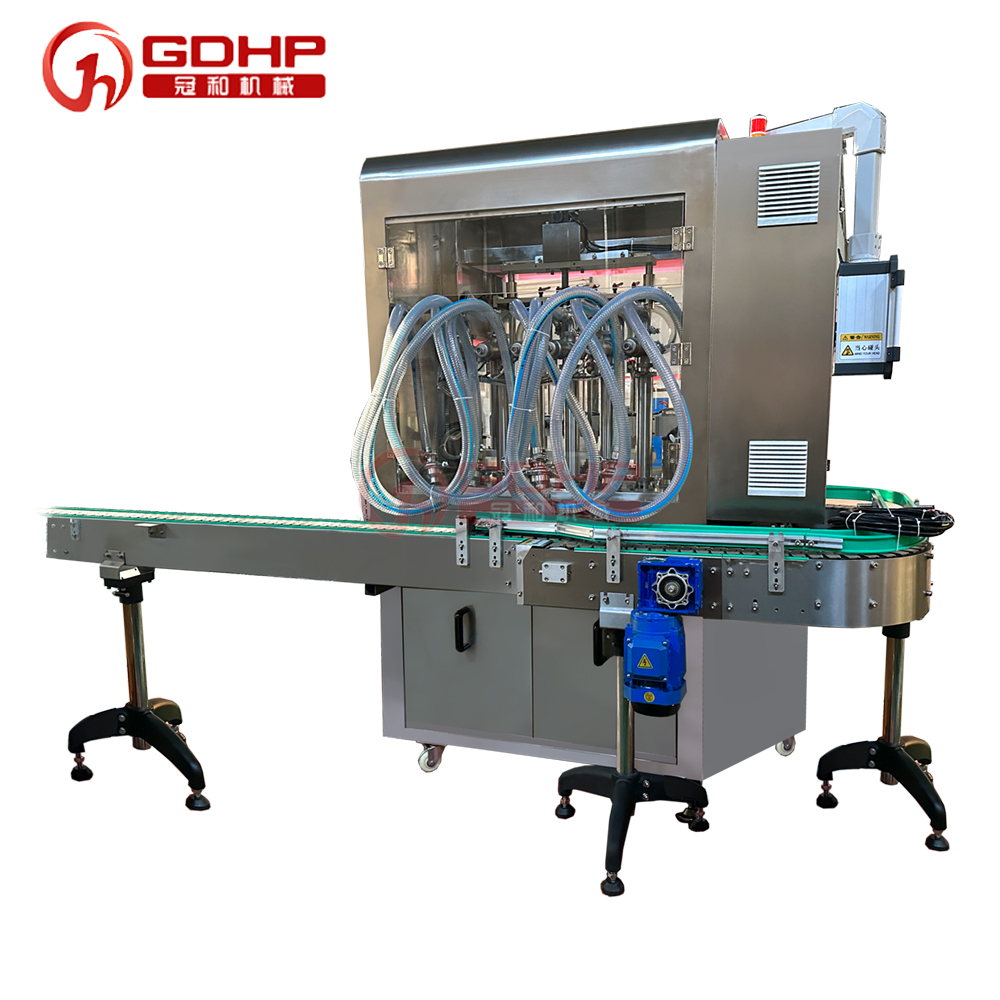

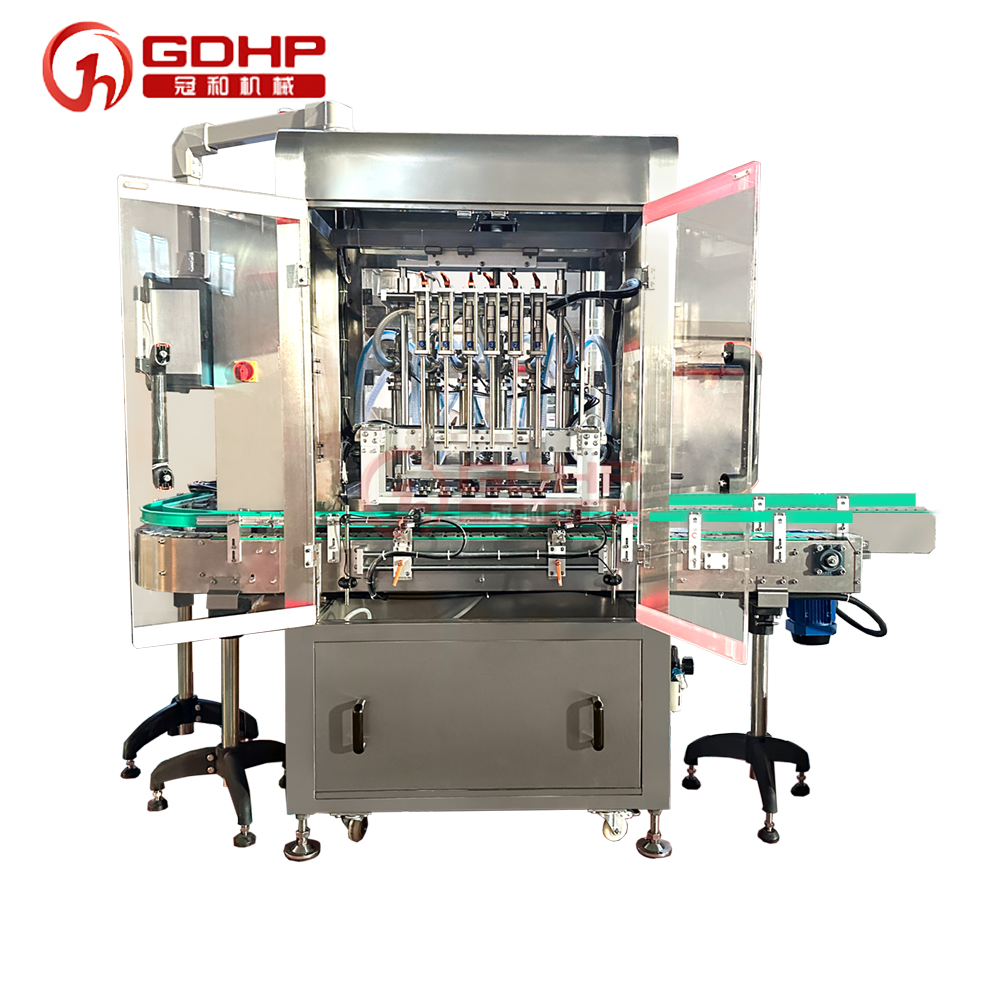

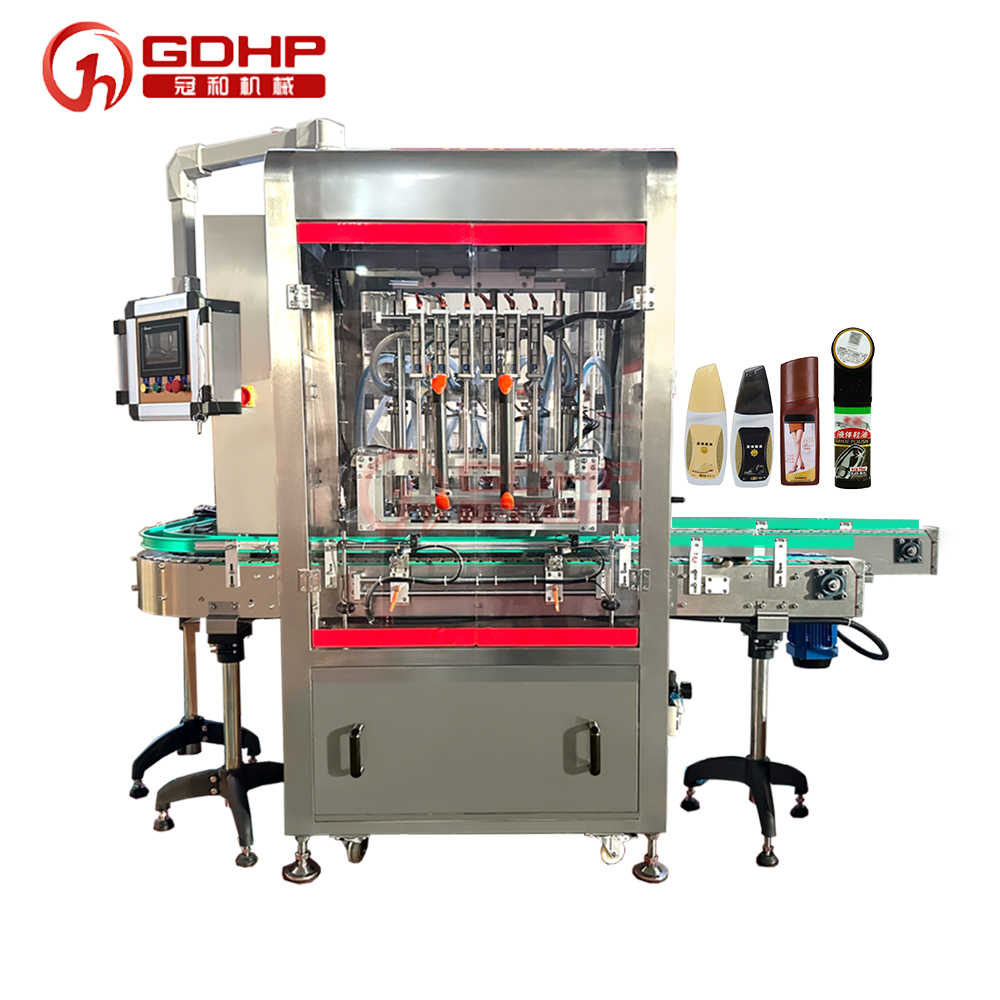

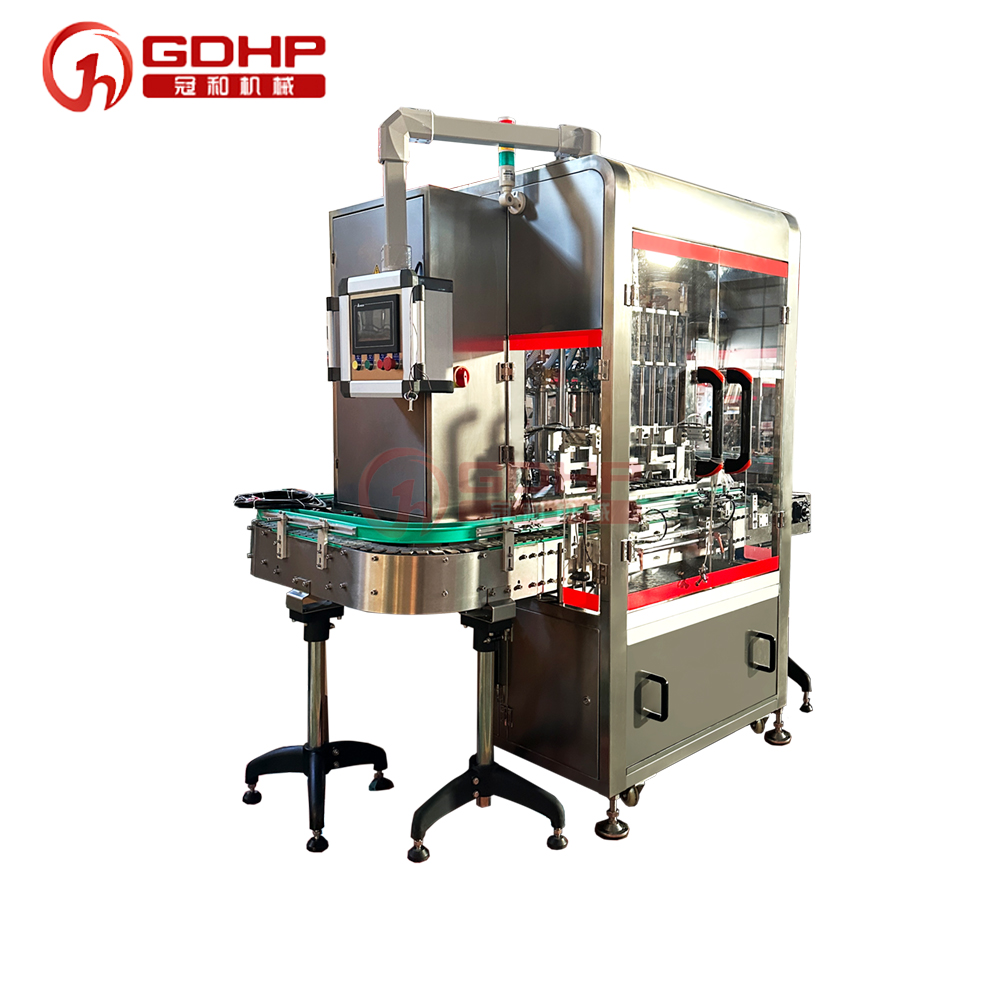

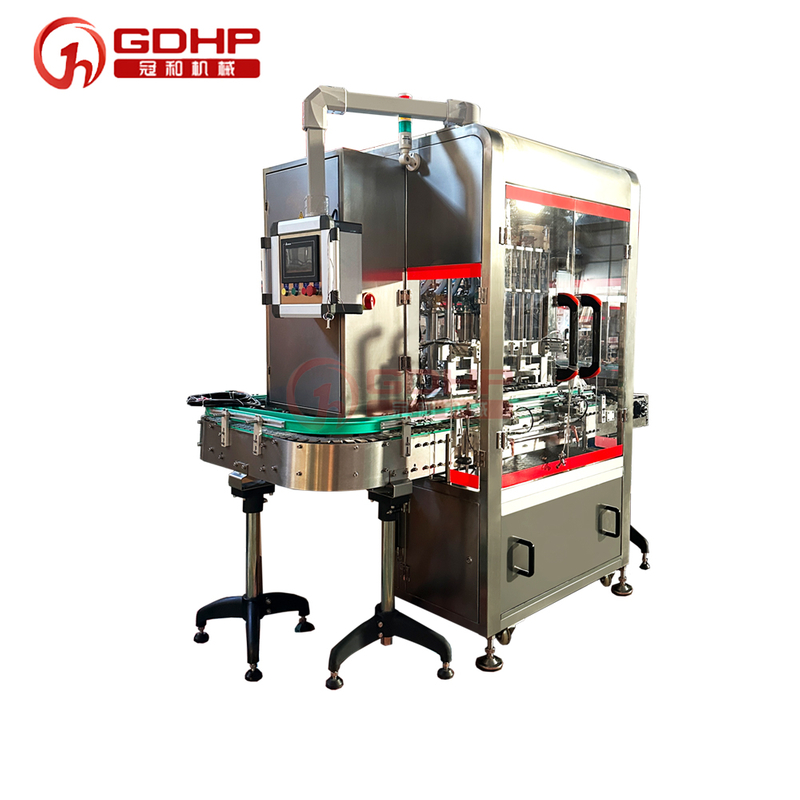

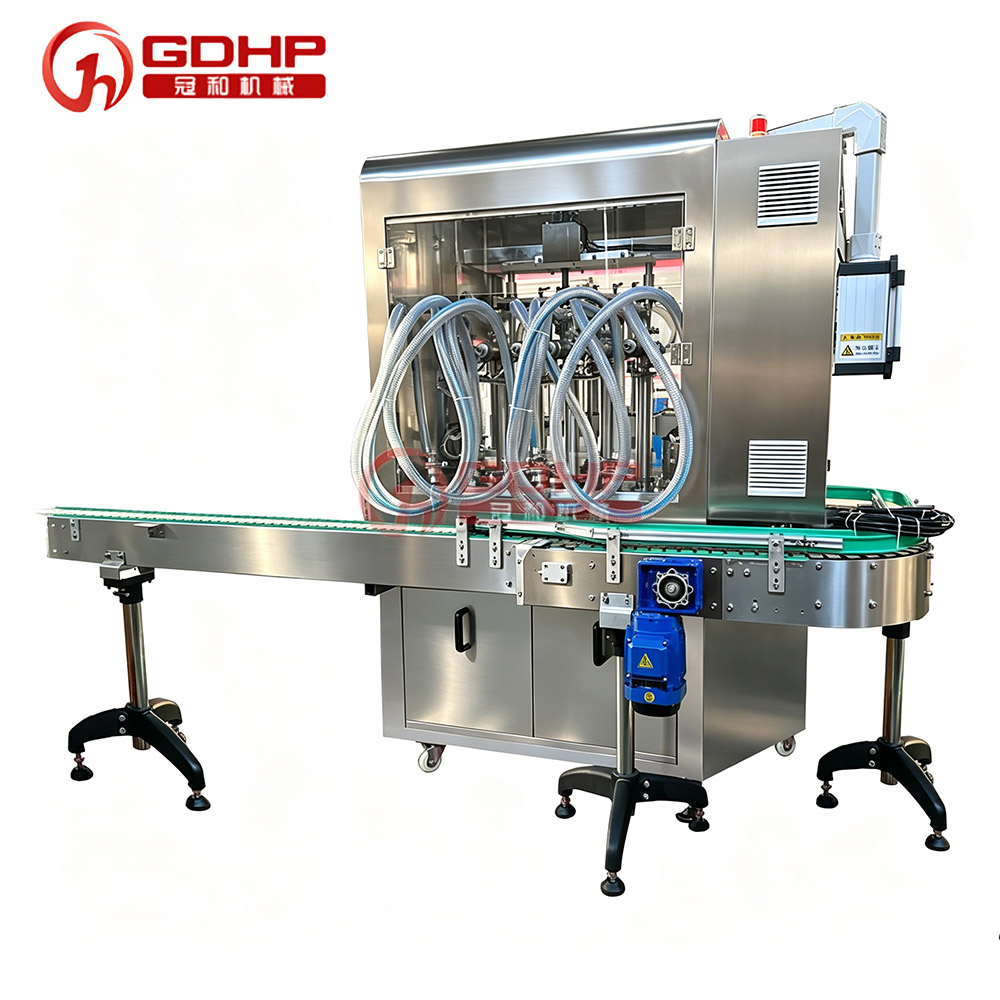

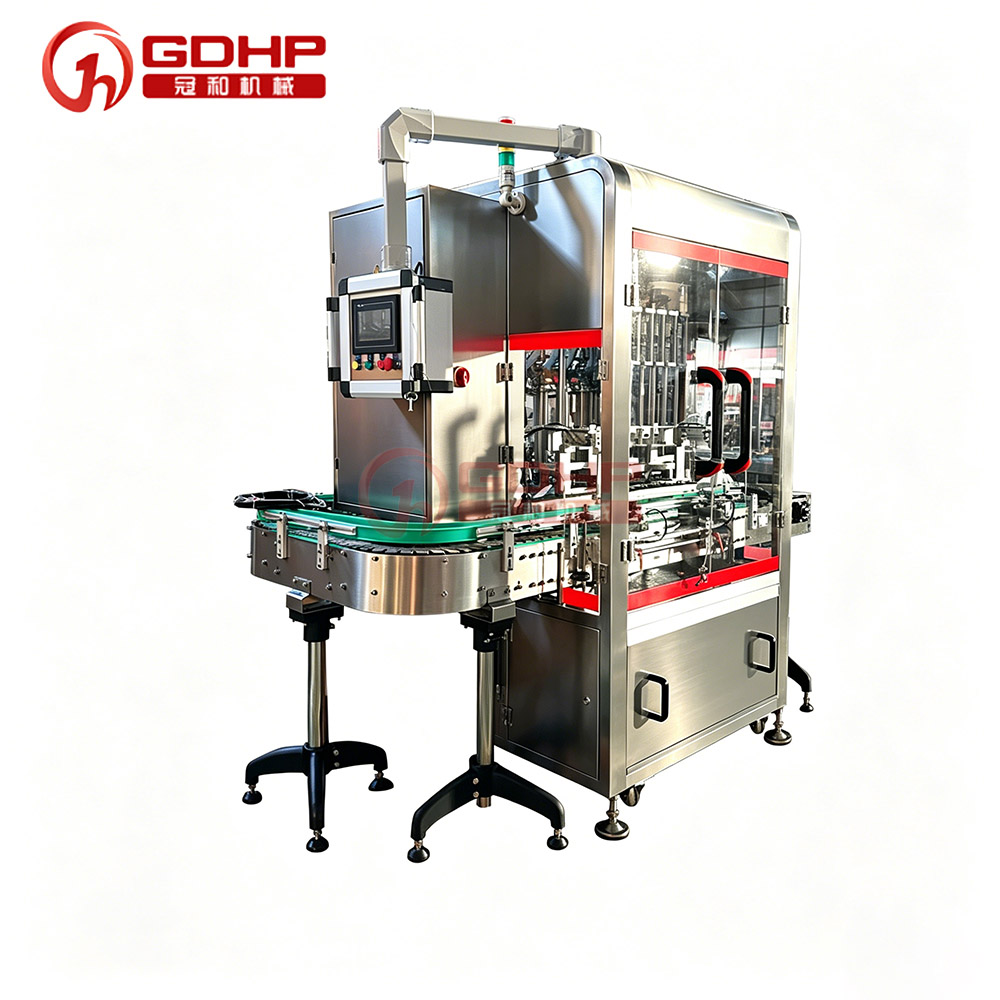

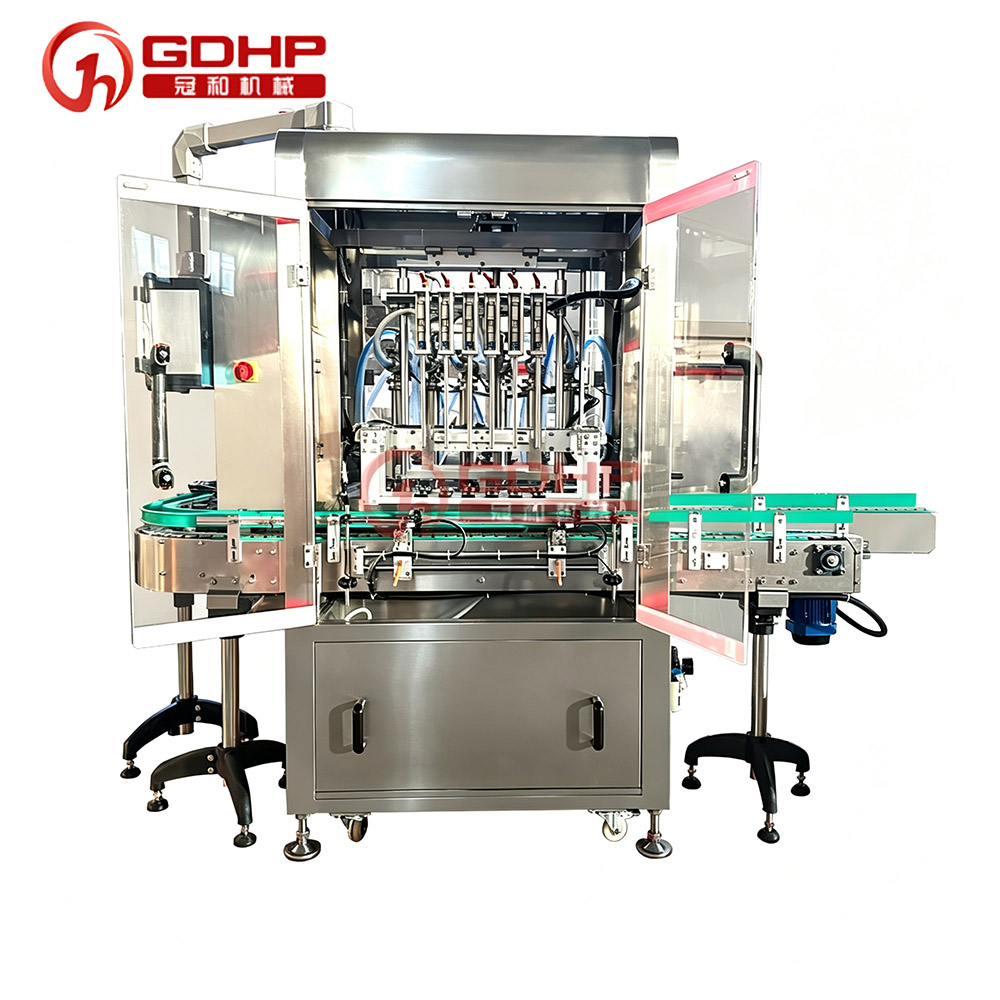

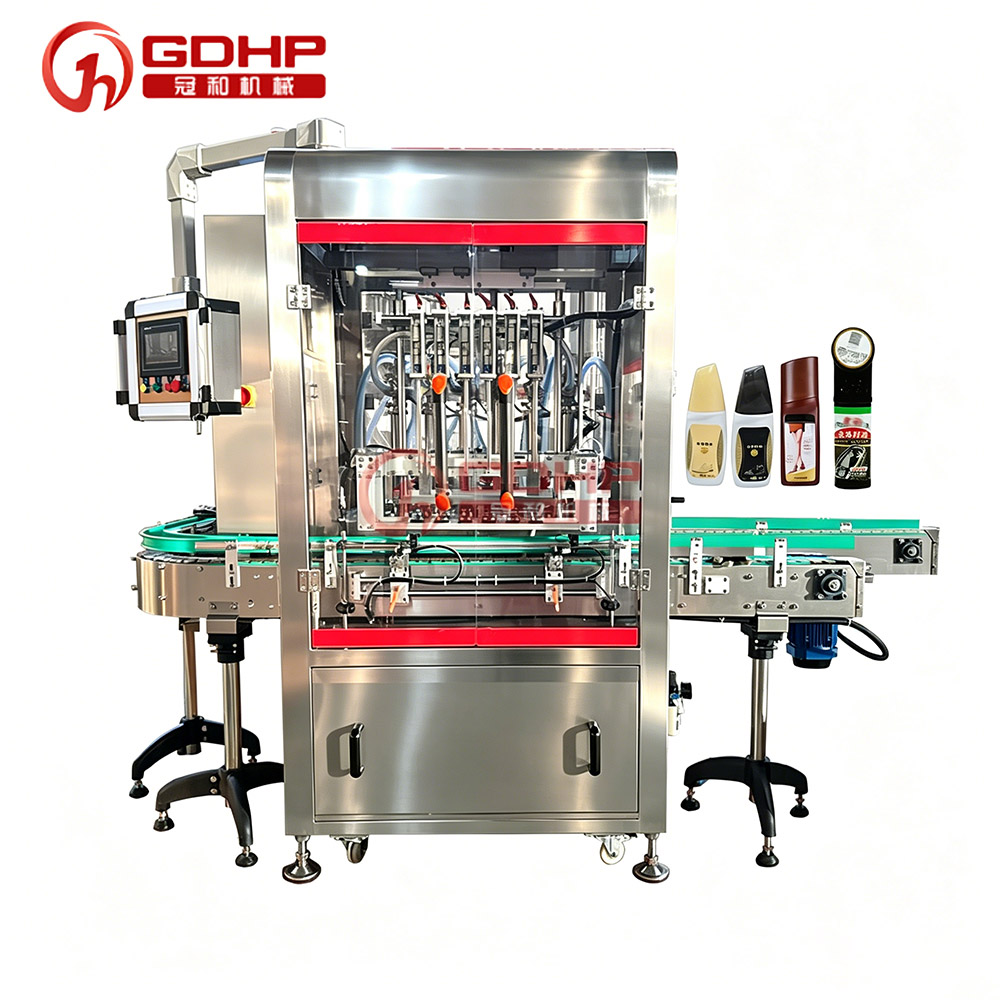

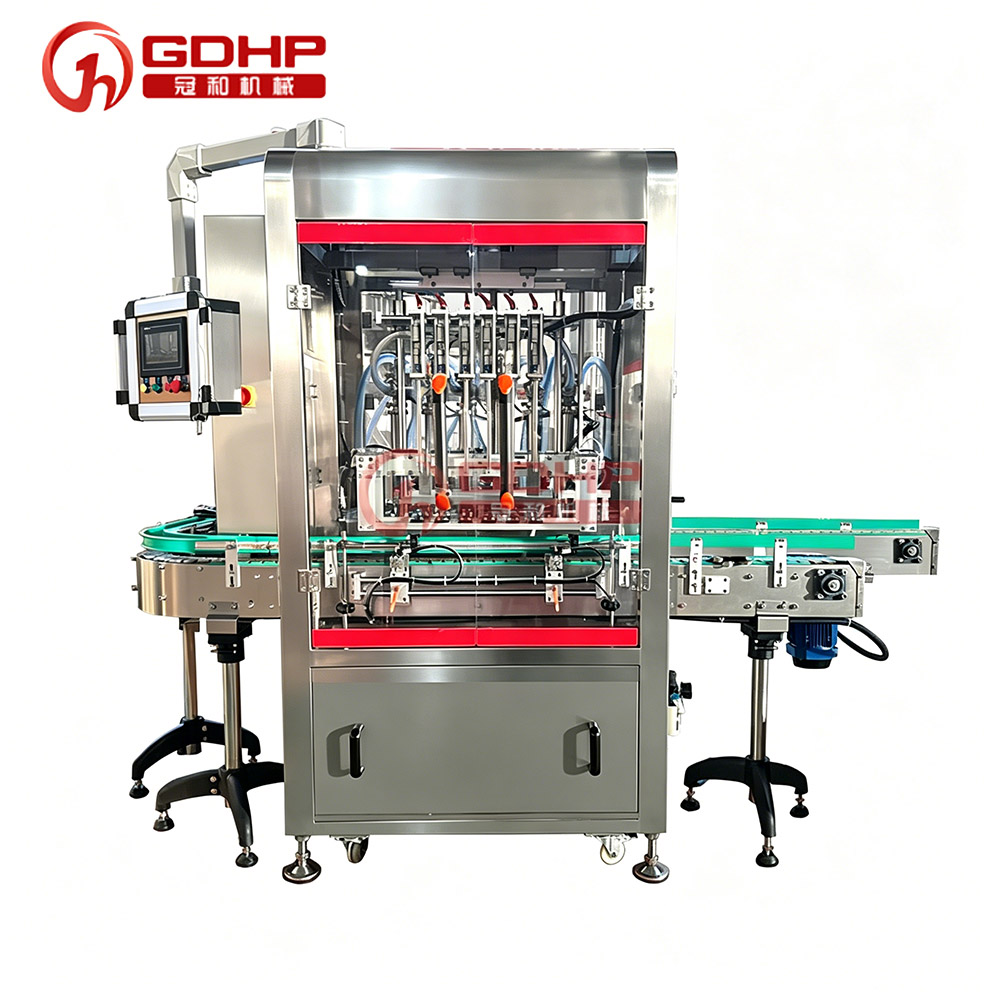

1.GHALF-6 fully automatic 6-head servo piston filling machine
Product introduction:
GHALF6 fully automatic servo filling machine is a patented product of our company. This machine uses a built-in piston and servo controls each activity.
The stroke of the plug cylinder ensures stable filling of materials during production and the piston assembly is more durable.
Product Features Overview

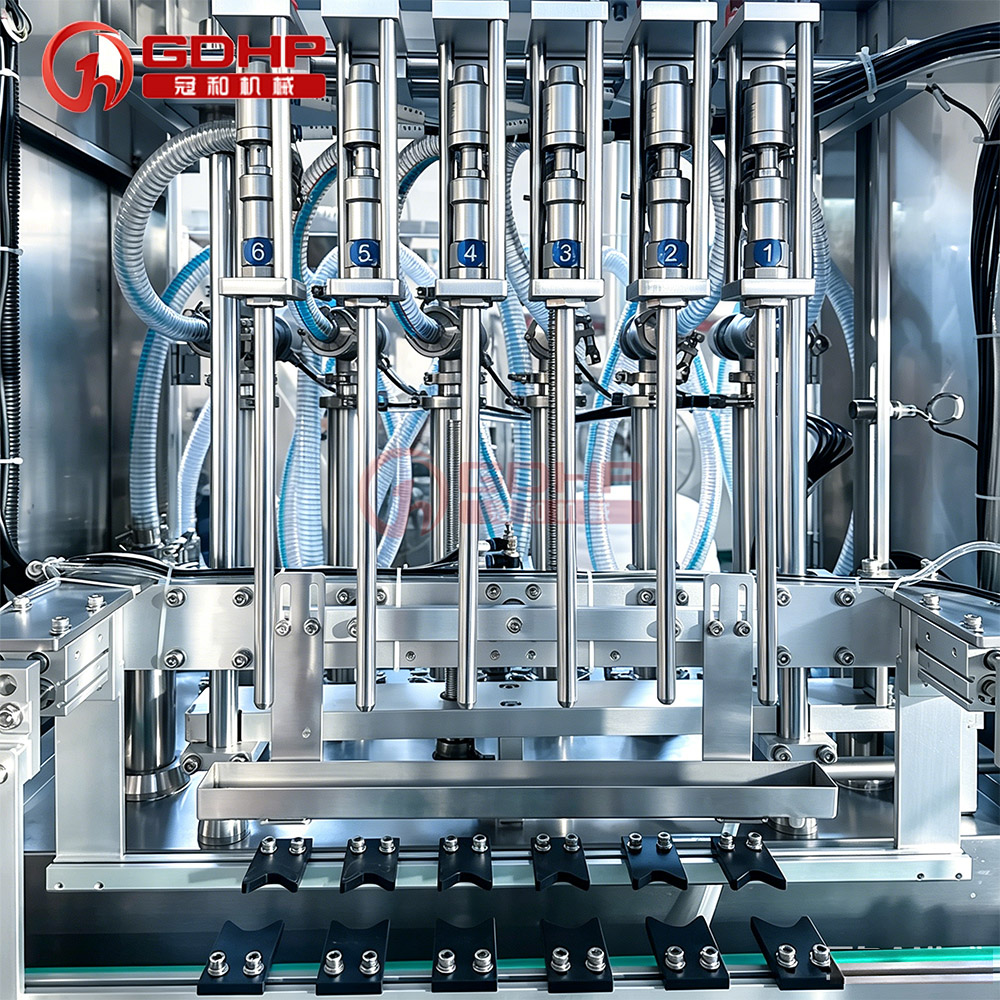

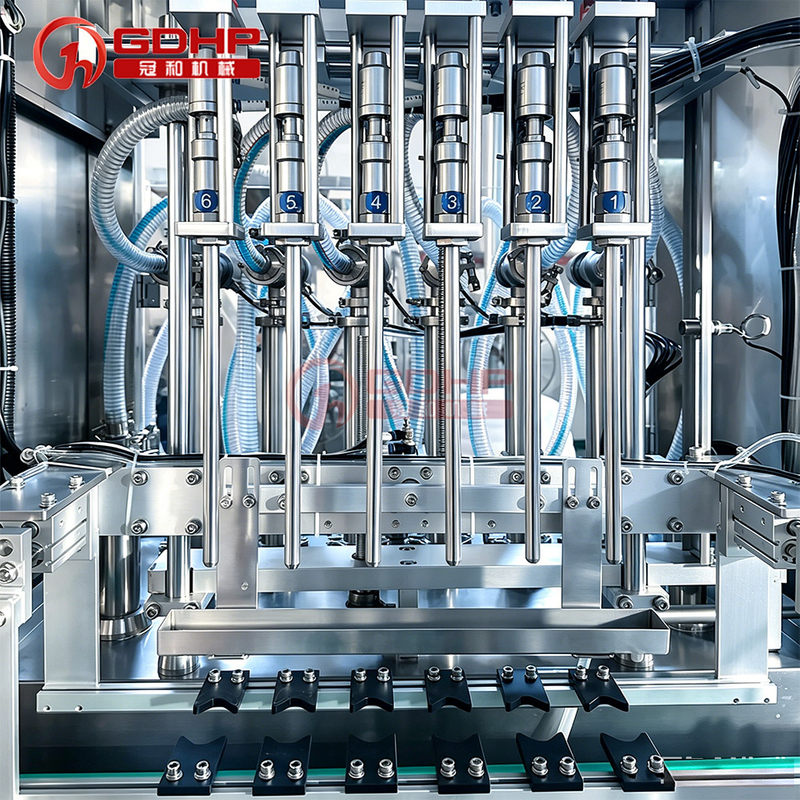

· High-precision filling : servo piston system, 6 heads independently controlled, precise and efficient.
· Widely applicable : 30-300ML capacity, suitable for low-viscosity liquid and aqueous filling.
· Intelligent operation : PLC touch screen control, recipe memory, one-key switching, easy adjustment.
· Anti-drip design : The filling nozzle is drip-proof, and the bottle rises while filling to avoid overflow and contamination.
· High-quality configuration : international brand electrical and pneumatic components, stable and durable.
· Hygienic design : self-priming extraction, SUS304 stainless steel shell, durable and beautiful.
1. Main parameters:
Number of filling heads | 6 heads | Filling range | 30-300ml |
Yield | More than 1500 bottles/hour | Loading accuracy | ±1% |
Rated power | 5kw | Operating voltage | 380V 50HZ three-phase four-wire |
Working air pressure | 0.6-0.8Mpa | Single machine noise | Less than 70dB |
Approximate weight of equipment | 1000kg | Dimensions | 2500*2200*2200mm |
2. Automatic sponge pressing machine (capping machine)
Overview
The GHYG automatic pneumatic capping machine produced by our company has all operations controlled by PLC, beautiful appearance, convenient debugging, etc. It can be equipped with automatic cap sorting and capping, or manual cap placement to realize product automation.
parameter:
Production capacity: 1500-1800 bottles/hour (speed can be changed according to user requirements).
Applicable bottle caps: plastic caps, sponge caps
Overall dimensions: 2000*500*1800mm
3. Automatic capping machine
Product Introduction:
1. This machine can manually screw on the cap, the tightness is adjustable, and the qualified rate of screwing on the cap is high.
2. This machine is a universal capping machine that simulates human hand movements. It is used for capping various threaded caps, such as various beverage threaded caps, caps with anti-theft rings, etc.
Applicable bottle diameter and cap specifications | According to actual customization |
Production Capacity | More than 1500 bottles/hour |
Air source pressure | 0.5-0.7 MPa |
power supply | 220V 50HZ 1.0kW |
weight | About 400 kg |
Dimensions: approx. | About 1000*500*1300mm |
Product Description
Part of the cetificatite
Passed CE / IS09001/ FDA /ATEX /Multiple Invention Patent Certificates and Practical Patent Certificates
