Hands-free hand sanitizer automatic filling sealing machine filling equipment

  • GDHP

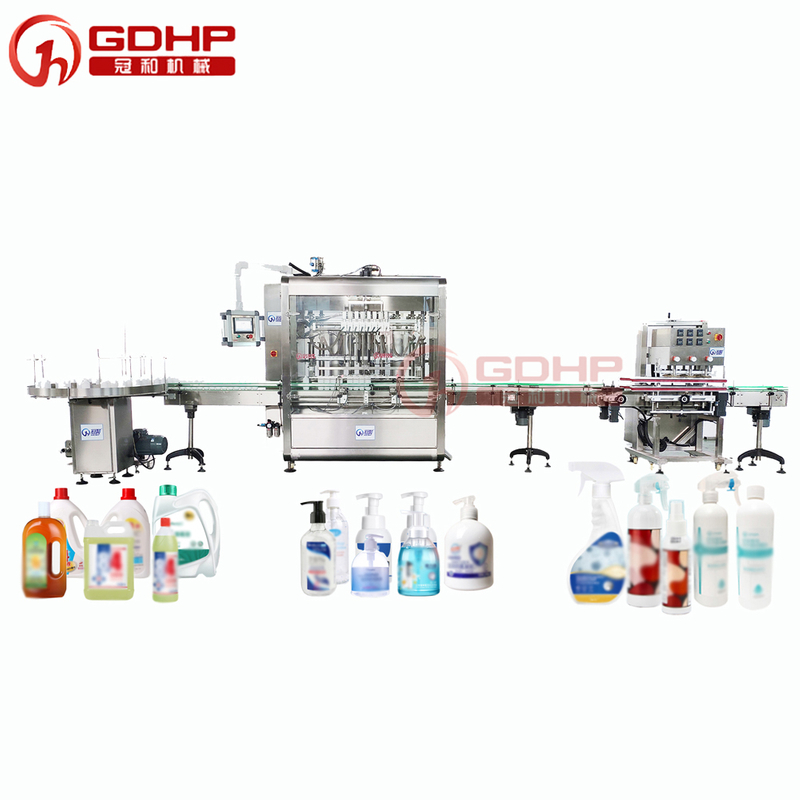

Automatic filling sealing machine filling equipment

1 Bottle unscramble machine (anti explosion):
Auto Explosion Proof Alcohol Liquid Filling Capping Labeling Machine Line

This bottle unscramble of this automatic filling sealing machine filling equipment is a dynamic worktable with frequency control. Its procedure: put bottles onto round turntable, then turntable rotate to poke bottles onto conveying belt, filling is began when bottles are sent into filling machine.

Applicable standards 10-1000ml Voltage 220v 50hz
Applicative bottle diameter φ10-φ100mm Output power 0.55kw
Applicative bottle height 55-300mm Weight 50kg
Production capacity 0-120bottles /min

2  6 nozzles filling machine (piston filling method):
Auto Explosion Proof Alcohol Liquid Filling Capping Labeling Machine Line
1) This automatic filling sealing machine filling equipment operates easily, with compact structure, perfect control system and high level of automation.
2). The filling process of different types of bottles 100~1000ml.
3). The parts contacting with product is made of quality SUS, anti-corrosive, and easy to clean.
4). By adopting high speed filling valve, the liquid level is precise and no waste is to increase. That guarantees the demand of modern filling technology.
5). Import PLC control servo motor preventing foaming when filling process.
6). By adopting overload protection system, it can ensure the protection of safety of the operator and equipment.
7). The electric equipment and pneumatic parts are of brand name of the world.

Mainly electrical equipment:

PLC Taiwan, Delta Pneumatic components Taiwan, Airtac
Touch screen Taiwan, Weinview Conveying motor France, Shineider
servo motor Taiwan, Delta Photoelectricity Japan, Keyence or Germany Sick
Frequency converter Taiwan, Delta or France, Shineider cylinder Taiwan, Airtac
Low-voltage electricals France, Shineider

Mainly parameter:

Item GHAGF-6
Filling nozzles 6
Filling range 100~1000ml
Filling accuracy ±1%
Air pressure 0.4-0.6mpa
Voltage 220v 50/60hz
Size 2000*1200*2200
Weight 1200kg

3  Capping machine:
Auto Explosion Proof Alcohol Liquid Filling Capping Labeling Machine Line

  1. Drawing the cap-screwing experience from home and abroad, our company especially designs this high-speed linear capping machine for the diversity of bottles & caps and screwing-styles, like various plastic threaded caps, spray pump caps and so on.

  2. Linear bottle entrance & bottle exit, this machine has wide adaptability for not only round bottles but also for flat square bottles & alien bottles, with flexible application, convenient operation & high efficiency.

  3. When bottles of different sizes are to be capped, no need change any parts, just do slightly adjustment via handle on the machine, very easy to operate & maintain.

  4. Also it's with two sets bottle-clamping ring belt apparatus, suitable for unstable & tall bottles, widely used for various bottles

  5. With electrically-driven vibrating hopper to auto feed bottles, it is suitable for automatically & continuously plastic caps;.

  6. The pneumatic and electric components are world-renowned brand, very reliable and durable.

Applicable bottle diameter Φ20-Φ96 mm Bottle cap size Φ10-Φ70 mm
Production capacity 60-70pieces/min Air pressure 0.5-0.7Mpa
Rated voltage 380V 50/60HZ Gross weight 400kg
External dimension(LWH) 2000×850×1680mm Total power 2kw

PLC Taiwan Delta Pneumatic components Taiwan AirTAC
Low-voltage electricals French Shineider Conveying motor French Shineider /

Germany Siemen

servo motor Taiwan Delta Photoelectricity Japan Keyence
Frequency converter Taiwan Delta /
French Shineider
cylinder Taiwan AirTAC

4 Labeling machine:
Auto Explosion Proof Alcohol Liquid Filling Capping Labeling Machine Line

Suitable for round bottle labeling, label position labeling, English Chinese touch screen operation, easy to learn the function.  PLC and servo motor feedback control, make no error, achieving instantaneous constant speed instantaneous abrupt stop, labeling, high precision and strong stability.

1. Any angle label header adjustment, more suitable for different product shape of regulation, operation simple and convenient.
2. Tag tray institutions, using the constant tension make label smooth operation, the most suitable for high speed labeling.
3. Cyanide 30 degrees dynamic locating mechanism of rubber roller and clamping cylinder roller three roller, make the product smooth rotation, thus improve the labeling accuracy.
4. Base on product features, can be designed to increase the special label.

Suitable bottle Plastic,glass, metal Power 220v 50hz
Working pressure 6kg/cm2 100L/min Labeling speed 45m/min
Labeling accuracy 1mm Label max height 20mm
Label inner diameter 76.2mm Label max outer diameter 350mm

Name Brand Name Brand
Servo motor Japan or Taiwan relayer France
Servo motor driver Japan or Taiwan Air switch France
Bottle separator motor China Touch screen France or Taiwan
Bottle detect electric eyes Japan Frequency inverter France or Taiwan
Label detect photo Photoelectricity Germany PLC Germany or Taiwan
