Overview:

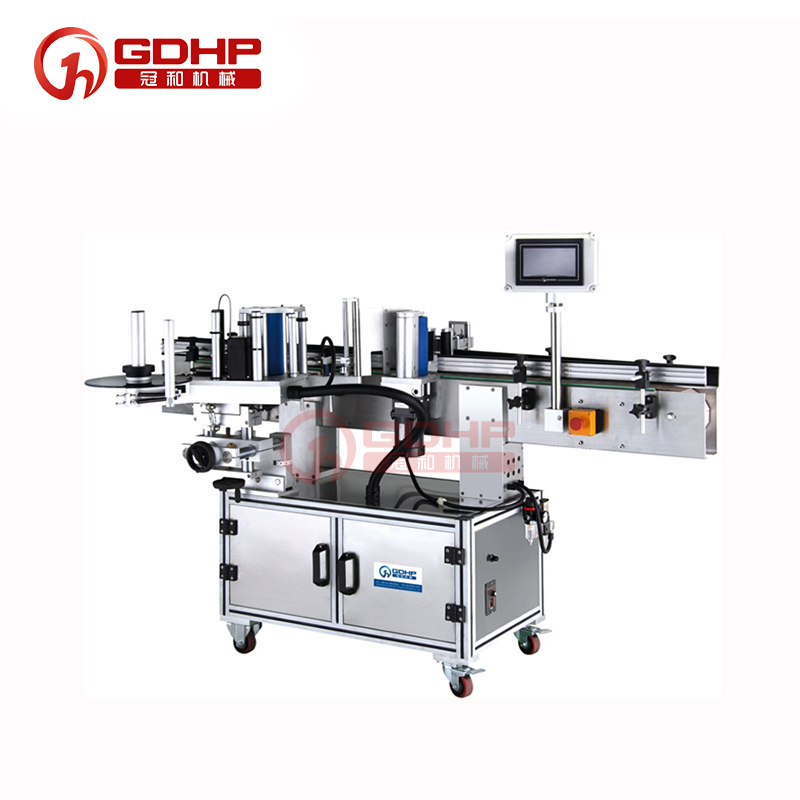

Vertical round bottle labeling machine adopts advanced rolling labeling method, optical fiber control, synchronous tracking, label output is controlled by stepping motor or servo motor, automatic detection of container and label size, and advanced functions such as automatic positioning to ensure labeling Synchronized, precise, and automated. The main engine is controlled by microcomputer, with touch-type large liquid crystal panel, display and built-in ten sets of memory devices. It is a modern advanced mechatronics equipment. The distribution (receiving) tray can be selected for stand-alone use, and it can also be directly connected to the production line, with excellent and reliable working performance. It can also be equipped with a printing machine to complete label printing synchronously. The self-adhesive labeling machine has the advantages of easy cleaning, no mold, beautiful and firm after labeling, will not fall off by itself, and high production efficiency. This series of machines is made of 304 stainless steel and anodized high-grade combined gold, which meets the GMP standard and is suitable for automatic labeling of containers in various industries such as medicine, daily chemical, and food.
The main technical parameters:
Model: GHAL-Y130
Label width (maximum): 130mm
Label length: 10-300mm
Conveyor belt width: 101.6mm
Bottle diameter (maximum): ø110mm
Paper roll outer diameter (maximum): ø350mm
Paper roll inner diameter: ø76mm
Labeling speed (maximum): 50m/min
Labeling accuracy: ±1mm
Machine size (length*width*height): 2200mm×1200mm×1200mm
(Can be customized according to customer bottle size)
Overview:
Vertical round bottle labeling machine adopts advanced rolling labeling method, optical fiber control, synchronous tracking, label output is controlled by stepping motor or servo motor, automatic detection of container and label size, and advanced functions such as automatic positioning to ensure labeling Synchronized, precise, and automated. The main engine is controlled by microcomputer, with touch-type large liquid crystal panel, display and built-in ten sets of memory devices. It is a modern advanced mechatronics equipment. The distribution (receiving) tray can be selected for stand-alone use, and it can also be directly connected to the production line, with excellent and reliable working performance. It can also be equipped with a printing machine to complete label printing synchronously. The self-adhesive labeling machine has the advantages of easy cleaning, no mold, beautiful and firm after labeling, will not fall off by itself, and high production efficiency. This series of machines is made of 304 stainless steel and anodized high-grade combined gold, which meets the GMP standard and is suitable for automatic labeling of containers in various industries such as medicine, daily chemical, and food.
The main technical parameters:
Model: GHAL-Y130
Label width (maximum): 130mm
Label length: 10-300mm
Conveyor belt width: 101.6mm
Bottle diameter (maximum): ø110mm
Paper roll outer diameter (maximum): ø350mm
Paper roll inner diameter: ø76mm
Labeling speed (maximum): 50m/min
Labeling accuracy: ±1mm
Machine size (length*width*height): 2200mm×1200mm×1200mm
(Can be customized according to customer bottle size)
